首頁 貼片晶振

12.88727無源晶體諧振器,KX-7T晶振,3225小型貼裝晶振

12.88727無源晶體諧振器,KX-7T晶振,3225小型貼裝晶振12.88727無源晶體諧振器,KX-7T晶振,3225小型貼裝晶振

產品簡介

12.88727無源晶體諧振器,KX-7T晶振,3225小型貼裝晶振,以24MHz晶振為固定工作頻率,兼具無源晶體的低功耗優勢,可降低工業設備的整體能耗.產品已通過抗振動測試及抗沖擊測試,能在自動化生產線,工業傳感器節點等復雜工況下保持長期頻率穩定性,有效降低設備因時鐘源故障導致的停機風險.

產品詳情

JLXNR-1

JLX-1

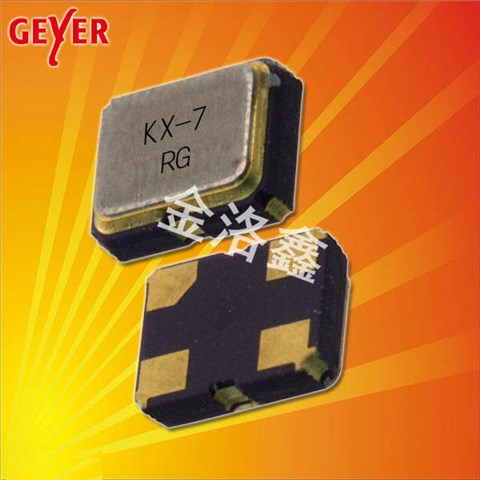

12.88727無源晶體諧振器,KX-7T晶振,3225小型貼裝晶振

12.88727MHz無源晶體諧振器,采用KX-7T成熟封裝與3225小型晶振架構,頻率精度嚴苛控制在±10ppm,工業級工作溫度范圍(-40℃~+85℃)內溫漂表現穩定,可精準匹配無線通信模塊,藍牙終端等高頻信號傳輸場景對時鐘源的高精度要求.3.2mm×2.5mm的迷你貼裝尺寸,能顯著節省PCB板布局空間,為高密度電路設計提供高靈活性的選型方案.

JLXNR-2

JLX-2

12.88727無源晶體諧振器,KX-7T晶振,3225小型貼裝晶振

原廠型號Originalmodel：

12.88727

品牌brand：

GEYER格耶晶振

型號名稱Modelname：

KX-7T

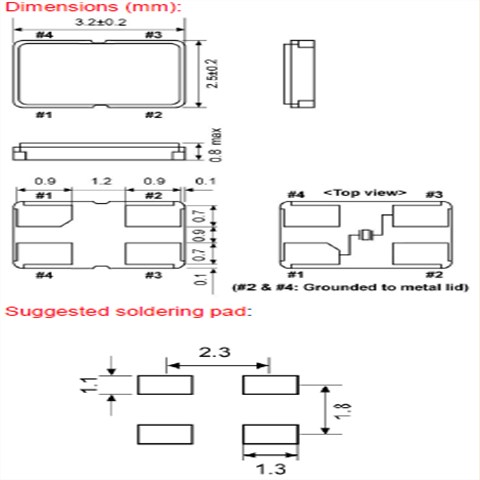

Size/Dimension尺寸

3225mm

Type系列：

MHz Crystal

高度PackageHeight：

0.8mm

頻率frequency：

24M

溫度OperatingTemperature

-40°C ~ 85°C

Frequency Stability頻率穩定度

-

腳位Termination：

4Pad

frequencytolerance頻率容差

10PP

封裝類型PackageType：

4-smd

Loadcapacitance負載電容

8PF

最小包裝數MPQ：

3000

JLXNR-3

JLX-3

12.88727無源晶體諧振器,KX-7T晶振,3225小型貼裝晶振

KX-7 3225

JLXNR-4

12.88727無源晶體諧振器,KX-7T晶振,3225小型貼裝晶振

12.87000

KX-327V

1.25 | 1.05 | 0.5 mm

32.768 kHz

12.5 pF

± 20 ppm

12.87001

KX-327V

1.25 | 1.05 | 0.5 mm

32.768 kHz

9 pF

± 20 ppm

12.87002

KX-327V

1.25 | 1.05 | 0.5 mm

32.768 kHz

7 pF

± 20 ppm

12.87034

KX-327R

2.0 | 1.2 | 0.6 mm

32.768 kHz

4 pF

± 20 ppm

12.87080

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

12.5 pF

± 10 ppm

12.87081

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

6 pF

± 20 ppm

12.87083

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

6 pF

± 20 ppm

12.87086

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

6 pF

± 10 ppm

12.87090

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

7 pF

± 10 ppm

12.87095

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

9 pF

± 10 ppm

12.87105

KX-327S

8.2 | 3.8 | 2.5 mm

32.768 kHz

6 pF

± 10 ppm

12.87107

KX-327S

8.2 | 3.8 | 2.5 mm

32.768 kHz

12.5 pF

± 20 ppm

12.87109

KX-327S

8.2 | 3.8 | 2.5 mm

32.768 kHz

12 pF

± 15 ppm

12.87110

KX-327S

8.2 | 3.8 | 2.5 mm

32.768 kHz

12.5 pF

± 30 ppm

12.87111

KX-327S

8.2 | 3.8 | 2.5 mm

32.768 kHz

12.5 pF

± 30 ppm

12.87112

KX-327S

8.2 | 3.8 | 2.5 mm

32.768 kHz

12.5 pF

± 20 ppm

12.87113

KX-327S

8.2 | 3.8 | 2.5 mm

32.768 kHz

12.5 pF

± 5.0 ppm

12.87114

KX-327S

8.2 | 3.8 | 2.5 mm

32.768 kHz

12.5 pF

± 20 ppm

12.87115

KX-327S

8.2 | 3.8 | 2.5 mm

32.768 kHz

12.5 pF

± 10 ppm

12.87116

KX-327S

8.2 | 3.8 | 2.5 mm

32.768 kHz

12.5 pF

± 10 ppm

12.87118

KX-327S

8.2 | 3.8 | 2.5 mm

32.768 kHz

6 pF

± 20 ppm

12.87119

KX-327S

8.2 | 3.8 | 2.5 mm

32.768 kHz

6 pF

± 20 ppm

12.87120

KX-327XS

4.95 | 1.82 | 0.96 mm

32.768 kHz

12.5 pF

± 30 ppm

12.87121

KX-327XS

4.95 | 1.82 | 0.96 mm

32.768 kHz

12.5 pF

± 30 ppm

12.87123

KX-327XS

4.95 | 1.82 | 0.96 mm

32.768 kHz

6 pF

± 30 ppm

12.87126

KX-327XS

4.95 | 1.82 | 0.96 mm

32.768 kHz

12.5 pF

± 20 ppm

12.87127

KX-327XS

4.95 | 1.82 | 0.96 mm

32.768 kHz

6 pF

± 30 ppm

12.87128

KX-327XS

4.95 | 1.82 | 0.96 mm

32.768 kHz

6 pF

± 20 ppm

12.87129

KX-327XS

4.95 | 1.82 | 0.96 mm

32.768 kHz

12.5 pF

± 20 ppm

12.87130

KX-327L

7.0 | 1.5 | 1.4 mm

32.768 kHz

12.5 pF

± 20 ppm

12.87131

KX-327L

7.0 | 1.5 | 1.4 mm

32.768 kHz

12.5 pF

± 20 ppm

12.87132

KX-327L

7.0 | 1.5 | 1.4 mm

32.768 kHz

7 pF

± 20 ppm

12.87133

KX-327L

7.0 | 1.5 | 1.4 mm

32.768 kHz

12.5 pF

± 10 ppm

12.87134

KX-327L

7.0 | 1.5 | 1.4 mm

32.768 kHz

7 pF

± 10 ppm

12.87135

KX-327L

7.0 | 1.5 | 1.4 mm

32.768 kHz

7 pF

± 20 ppm

12.87136

KX-327L

7.0 | 1.5 | 1.4 mm

32.768 kHz

12.5 pF

± 10 ppm

12.87137

KX-327L

7.0 | 1.5 | 1.4 mm

32.768 kHz

9 pF

± 20 ppm

12.87138

KX-327L

7.0 | 1.5 | 1.4 mm

32.768 kHz

12.5 pF

± 5.0 ppm

12.87139

KX-327L

7.0 | 1.5 | 1.4 mm

32.768 kHz

7 pF

± 10 ppm

12.87143

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

9 pF

± 20 ppm

12.87144

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

7 pF

± 5.0 ppm

12.87145

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

12.5 pF

± 20 ppm

12.87146

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

9 pF

± 10 ppm

12.87147

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

7 pF

± 10 ppm

12.87148

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

7 pF

± 20 ppm

12.87149

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

9 pF

± 20 ppm

12.87150

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

12.5 pF

± 20 ppm

12.87151

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

9 pF

± 30 ppm

12.87152

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

12.5 pF

± 20 ppm

12.87153

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

7 pF

± 20 ppm

12.87155

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

12.5 pF

± 30 ppm

12.87157

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

12.5 pF

± 5.0 ppm

12.87158

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

12.5 pF

± 10 ppm

12.87159

KX-327NH

3.2 | 1.5 | 0.8 mm

32.768 kHz

12.5 pF

± 20 ppm

12.87160

KX-327R

2.0 | 1.2 | 0.6 mm

32.768 kHz

12.5 pF

± 20 ppm

12.87161

KX-327R

2.0 | 1.2 | 0.6 mm

32.768 kHz

12.5 pF

± 5.0 ppm

12.87163

KX-327R

2.0 | 1.2 | 0.6 mm

32.768 kHz

7 pF

± 20 ppm

12.87164

KX-327R

2.0 | 1.2 | 0.6 mm

32.768 kHz

9 pF

± 30 ppm

12.87165

KX-327R

2.0 | 1.2 | 0.6 mm

32.768 kHz

9 pF

± 20 ppm

12.87166

KX-327R

2.0 | 1.2 | 0.6 mm

32.768 kHz

12.5 pF

± 20 ppm
