首頁 CTS晶振

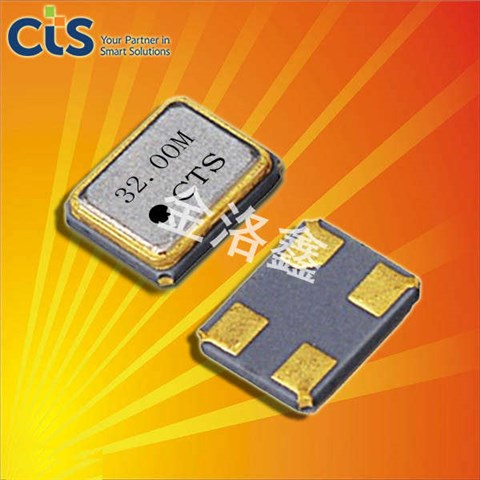

403C11A32M00000-3225mm-10ppm-32M-10pf

403C11A32M00000-3225mm-10ppm-32M-10pf403C11A32M00000-3225mm-10ppm-32M-10pf

產品簡介

403C11A32M00000-3225mm-10ppm-32M-10pf,403C11A32M00000,美國西迪斯晶振,3225mm石英晶振,精度10ppm,頻率32M,負載10pf,SMD進口晶振,無源晶振,無線路由器晶振,藍牙音響晶振,筆記本電腦晶振,便攜式設備晶振.




產品詳情

CTS

403C11A32M00000-3225mm-10ppm-32M-10pf,403C11A32M00000,美國西迪斯晶振,3225mm石英晶振,精度10ppm,頻率32M,負載10pf,SMD進口晶振,無源晶振,無線路由器晶振,藍牙音響晶振,筆記本電腦晶振,便攜式設備晶振.

4403C11A32M00000-3225mm-10ppm-32M-10pf 特征

1.標準3.2mm x 2.5mm焊縫封裝基本晶體設計

2.頻率范圍10 - 60MHz, 頻率公差 ±30ppm標準, 頻率穩定性±30ppm標準 ,工作溫度-40°C~+85°C

3.膠帶和卷軸包裝標準, EIA-481符合RoHS/綠色標準

4.402型是一種低成本的石英諧振器,廣泛用于商業應用,包括WLAN/WiMax/WiFi, A/V，藍牙，ZigBee和USB接口,筆記本電腦,電腦外圍設備,便攜式設備。

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

403C11A32M00000-3225mm-10ppm-32M-10pf參數

項目 數值
頻率 32MHz
操作模式 Fundamental
晶體切割 AT-Cut
工作溫度 -20°Cto+70°C
保存溫度 -40°Cto+100°C
頻率公差@ +25°C ±30PPM

工作溫度范圍內的頻率穩定性( ref. to

+25°C)

±30PPM
等效串聯電阻(R1) 60Ω
并聯電容(C0) 3.0pF Typical, 5.0pF Maximum
負載電容 (CL) 10pF
激勵功率 200μW Max
老化@ +25°C ±3ppm/yr Typical
絕緣電阻 500M Ohms @ DC 100V

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

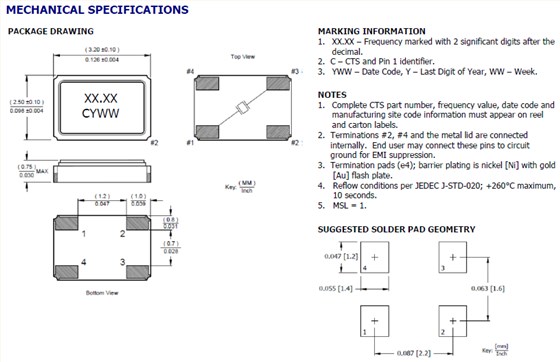

403C11A32M00000-3225mm-10ppm-32M-10pf尺寸圖

403 3225

原廠編碼 生產廠家 型號 頻率 頻率穩定度 頻率偏差 負載電容 ESR電阻 工作溫度
403C11A32M00000 CTS 晶振 403 32MHz ±10ppm ±10ppm 10pF 60 Ohm -20°C ~ 70°C
403C35D25M00000 CTS 晶振 403 25MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C35D12M00000 CTS 晶振 403 12MHz ±50ppm ±30ppm 18pF 150 Ohm -20°C ~ 70°C
403C35D24M00000 CTS 晶振 403 24MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C35E13M00000 CTS 晶振 403 13MHz ±50ppm ±30ppm 20pF 150 Ohm -20°C ~ 70°C
403C35E27M00000 CTS 晶振 403 27MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
403C11A16M00000 CTS 晶振 403 16MHz ±10ppm ±10ppm 10pF 80 Ohm -20°C ~ 70°C
403C11A24M00000 CTS 晶振 403 24MHz ±10ppm ±10ppm 10pF 60 Ohm -20°C ~ 70°C
403C11A16M80000 CTS 晶振 403 16.8MHz ±10ppm ±10ppm 10pF 80 Ohm -20°C ~ 70°C
403C35D22M11840 CTS 晶振 403 22.1184MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C35D28M37500 CTS 晶振 403 28.375MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C35D28M63636 CTS 晶振 403 28.63636MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C35E12M00000 CTS 晶振 403 12MHz ±50ppm ±30ppm 20pF 150 Ohm -20°C ~ 70°C
403C23E26M69000 CTS 晶振 403 26.69MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
403C35E16M00000 CTS 晶振 403 16MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
403I35D12M00000 CTS 晶振 403 12MHz ±50ppm ±30ppm 18pF 150 Ohm -40°C ~ 85°C
403I35D16M00000 CTS 晶振 403 16MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
403I35D24M00000 CTS 晶振 403 24MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
403I35D30M00000 CTS 晶振 403 30MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
403I35E16M00000 CTS 晶振 403 16MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
403I35E26M00000 CTS 晶振 403 26MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
403C11E32M00000 CTS 晶振 403 32MHz ±10ppm ±10ppm 20pF 60 Ohm -20°C ~ 70°C
403C35D27M00000 CTS 晶振 403 27MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C35D27M00000 CTS 晶振 403 27MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C35D27M00000 CTS 晶振 403 27MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C35E26M00000 CTS 晶振 403 26MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
403C35E26M00000 CTS 晶振 403 26MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
403C35E26M00000 CTS 晶振 403 26MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
403C35D48M00000 CTS 晶振 403 48MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C35D48M00000 CTS 晶振 403 48MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C35D48M00000 CTS 晶振 403 48MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C35D20M00000 CTS 晶振 403 20MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C35D20M00000 CTS 晶振 403 20MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C35D20M00000 CTS 晶振 403 20MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C11E16M00000 CTS 晶振 403 16MHz ±10ppm ±10ppm 20pF 80 Ohm -20°C ~ 70°C
403C11E16M00000 CTS 晶振 403 16MHz ±10ppm ±10ppm 20pF 80 Ohm -20°C ~ 70°C
403C11E16M00000 CTS 晶振 403 16MHz ±10ppm ±10ppm 20pF 80 Ohm -20°C ~ 70°C
403C11A40M00000 CTS 晶振 403 40MHz ±10ppm ±10ppm 10pF 60 Ohm -20°C ~ 70°C
403C11A40M00000 CTS 晶振 403 40MHz ±10ppm ±10ppm 10pF 60 Ohm -20°C ~ 70°C
403C11A40M00000 CTS 晶振 403 40MHz ±10ppm ±10ppm 10pF 60 Ohm -20°C ~ 70°C
403C35D30M00000 CTS 晶振 403 30MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C35D30M00000 CTS 晶振 403 30MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C35D30M00000 CTS 晶振 403 30MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
403C11A20M00000 CTS 晶振 403 20MHz ±10ppm ±10ppm 10pF 60 Ohm -20°C ~ 70°C
403C11A20M00000 CTS 晶振 403 20MHz ±10ppm ±10ppm 10pF 60 Ohm -20°C ~ 70°C
403C11A20M00000 CTS 晶振 403 20MHz ±10ppm ±10ppm 10pF 60 Ohm -20°C ~ 70°C
403I35D27M00000 CTS 晶振 403 27MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
403I35D27M00000 CTS 晶振 403 27MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
403I35D27M00000 CTS 晶振 403 27MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
403I35D18M43200 CTS 晶振 403 18.432MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
403I35D18M43200 CTS 晶振 403 18.432MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
403I35D18M43200 CTS 晶振 403 18.432MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
403I35D20M00000 CTS 晶振 403 20MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
403I35D20M00000 CTS 晶振 403 20MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
403I35D20M00000 CTS 晶振 403 20MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C

403C11A32M00000-3225mm-10ppm-32M-10pf規格書與內部識別碼

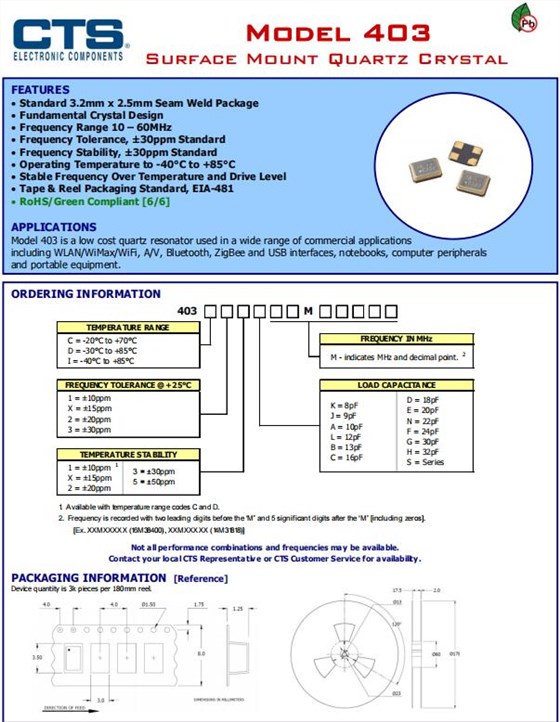

403-2

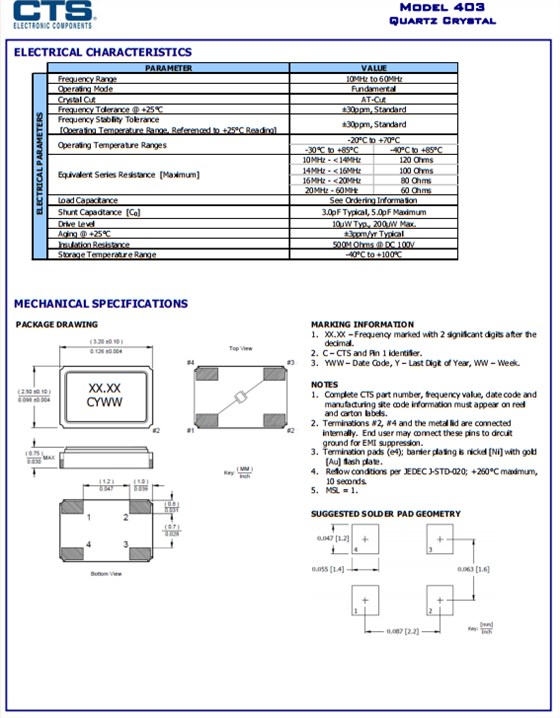

403

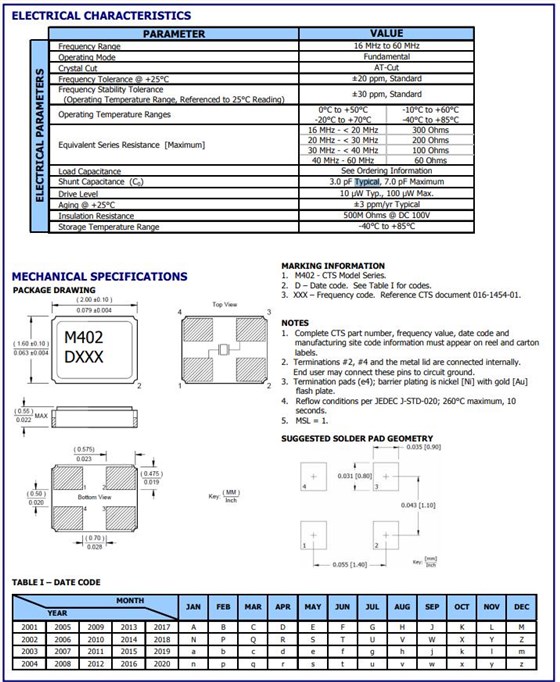

402(2)
