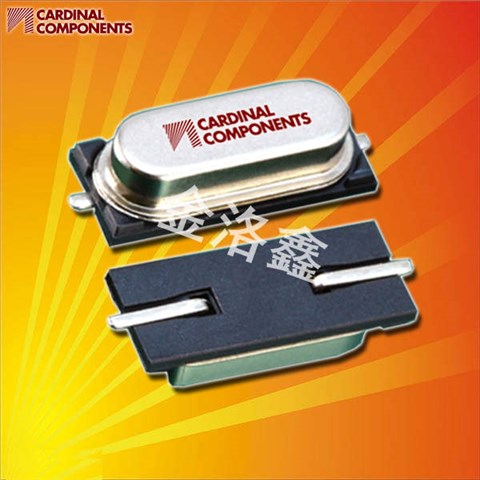

CSM1Z-A5B2C3-40-27.0D18-F,Cardinal無線局域網晶振,27MHz石英晶體，美國Cardinal晶振，卡迪納爾晶振，型號：CSM1系列，編碼為：CSM1Z-A5B2C3-40-27.0D18-F，頻率：27MHz，工作溫度范圍：-20℃至+70℃，頻率穩定性：±50ppm，頻率容差：±30ppm，負載電容：18pF，是一款小體積晶振尺寸：12.5x4.5mm橢圓形金屬外殼封裝，低輪廓表面安裝晶體，兩腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，無鉛環保晶振。進口晶振，被廣泛用于：通訊設備晶振，無線晶振，藍牙模塊晶振，無線局域網晶振，微控制器，汽車電子，機頂盒等應用.
CSM1Z-A5B2C3-40-27.0D18-F,Cardinal無線局域網晶振,27MHz石英晶體，產品特點：
•薄型表面貼裝水晶
•封裝是自動表面安裝組件和回流焊實踐的理想選擇
•CSM1-4.6mm；CSM4-3.5mm；CSM5-3.0mm高
•AT切割水晶石英晶振
•頻率范圍：3.579545MHz至80MHz

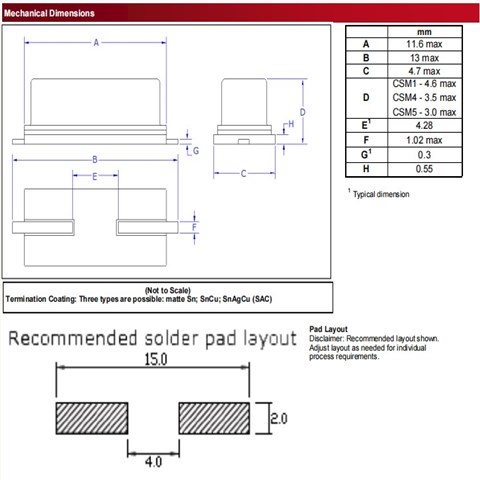

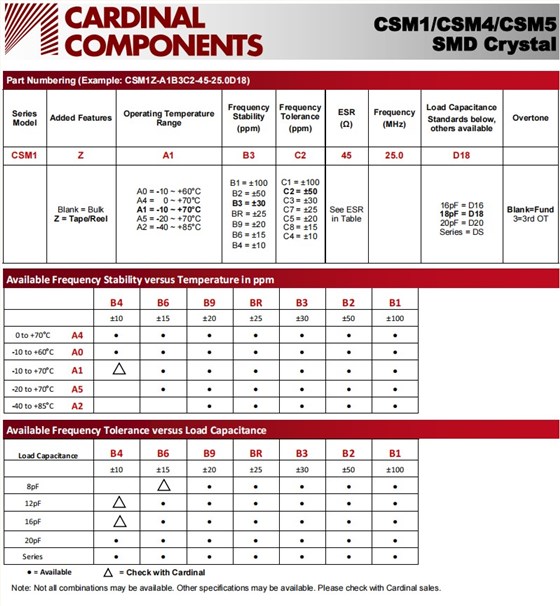

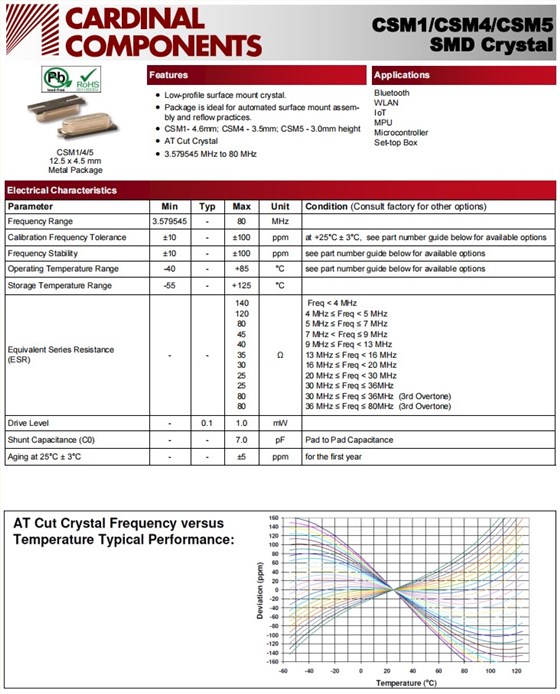

CSM1Z-A5B2C3-40-27.0D18-F,Cardinal無線局域網晶振,27MHz石英晶體,參數表
| Parameter | Min | Typ | Max | Unit | Condition(Consult factory for other options) | |||||||||||||||||||||||
| Frequency Range |
|
27 |
|
MHz | ||||||||||||||||||||||||
| Calibration Frequency Tolerance | ±10 | - | ±100 | ppm | at +25°C ± 3°C,see part number guide below for available options | |||||||||||||||||||||||
| Frequency Stability | ±10 | - | ±100 | ppm | see part number guide below for available options | |||||||||||||||||||||||
| Operating Temperature Range | -40 | - | +85 | °C | see part number guide below for available options | |||||||||||||||||||||||
| Storage Temperature Range | -55 | - | +125 | °C | ||||||||||||||||||||||||
|
Equivalent Series Resistance (ESR) |
- | - |
140 120 80 45 40 35 30 25 25 80 80 |
Ω |
Freq < 4 MHz 4 MHz ≤ Freq < 5 MHz 5 MHz ≤ Freq ≤ 7 MHz 7 MHz < Freq ≤ 9 MHz 9 MHz ≤ Freq < 13 MHz 13 MHz ≤ Freq < 16 MHz 16 MHz ≤ Freq < 20 MHz 20 MHz ≤ Freq < 30 MHz 30 MHz ≤ Freq ≤ 36MHz 30 MHz ≤ Freq ≤ 36MHz(3rd Overtone) 36 MHz ≤ Freq ≤ 80MHz(3rd Overtone) |
|||||||||||||||||||||||
| Drive Level | - | 0.1 | 1.0 | mW | ||||||||||||||||||||||||
| Shunt Capacitance (C0) | - | - | 7.0 | pF | Pad to Pad Capacitance | |||||||||||||||||||||||
| Aging at 25°C ± 3°C | - | - | ±5 | ppm |
for the first year |
|||||||||||||||||||||||
