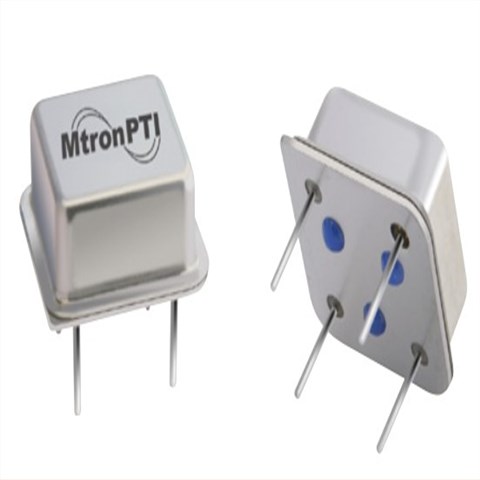

M3H24TAD-R 25.000000,MtronPTI通訊設備晶振,M3H系列時鐘振蕩器，美國MtronPTI晶振，麥特倫皮晶振廠家，型號：M3H系列，編碼為：M3H24TAD-R 25.000000，頻率：25MHz，電壓：3.3V，頻率穩定性：±50ppm，工作溫度范圍：-40℃至+70℃，HCMOS輸出晶振，小體積晶振尺寸：13.2x13.2x5.97mm封裝，8 pin DIP正方型鐘振，時鐘振蕩器，石英晶振，有源晶振，石英晶體振蕩器。具有高性能，高精度，高品質，高可靠性，低抖動等特點。應用于：汽車電子晶振，安防設備晶振，通信設備晶振，物聯網等應用。

M3H24TAD-R 25.000000,MtronPTI通訊設備晶振,M3H系列時鐘振蕩器,參數表

品牌	MtronPTI麥特倫皮晶振
型號	M3H
物料編碼	M3H24TAD-R 25.000000
頻率	25MHz
頻率穩定性	±50ppm
輸出	HCMOS
電源電壓	3.3V
工作溫度	-40℃至+70℃
尺寸	13.2x13.2x5.97mm

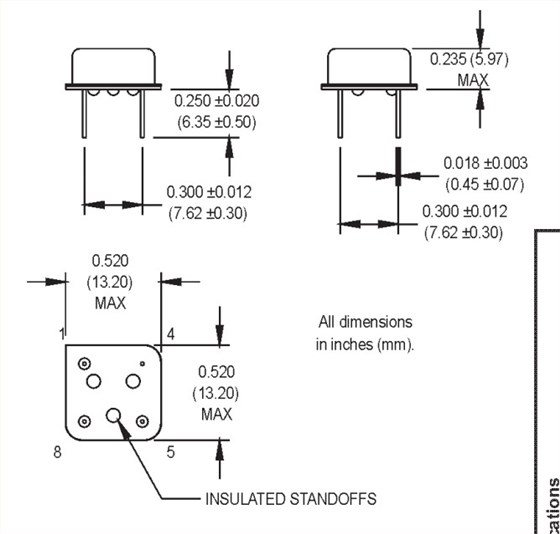

M3H24TAD-R 25.000000,MtronPTI通訊設備晶振,M3H系列時鐘振蕩器,尺寸圖

產品編碼	型號	振蕩器類型	頻率穩定性	頻率	頻率容差
M3H23FAD-R 25.000000	M3H and MH	XO	±100 ppm	25	±100 ppm
M3H23FAD-R 66.000000	M3H and MH	XO	±100 ppm	66	±100 ppm
M3H24TAD-R 25.000000	M3H and MH	XO	±50 ppm	25	±50 ppm
M3H26FAD-R 37.632000	M3H and MH	XO	±25 ppm	37.632	±100 ppm
M3H63TCD-R 14.745600	M3H and MH	XO	±100 ppm	14.7456	±100 ppm
MH12FDD-R 7.372800	M3H and MH	XO	±500 ppm	7.3728	±500 ppm
MH13FAD-R 1.843200	M3H and MH	XO	±100 ppm	1.8432	±100 ppm
MH13FAD-R 7.372800	M3H and MH	XO	±100 ppm	7.3728	±100 ppm
MH13FAD-R 8.000000	M3H and MH	XO	±100 ppm	8	±100 ppm
MH13FCD-R 4.000000	M3H and MH	XO	±100 ppm	4	±100 ppm
MH13TAD-R 16.777216	M3H and MH	XO	±100 ppm	16.7772	±100 ppm
MH13TBG-R 1.544000	M3H and MH	XO	±100 ppm	1.544	±100 ppm
MH13TBG-R 10.000000	M3H and MH	石英晶振	±100 ppm	10	±100 ppm
MH13TBG-R 16.000000	M3H and MH	XO	±100 ppm	16	±100 ppm
MH13TBG-R 3.686400	M3H and MH	XO	±100 ppm	3.6864	±100 ppm
MH14FAD-R 5.000000	M3H and MH	XO	±50 ppm	5	±50 ppm
MH14FAG-R 2.048000	M3H and MH	XO	±50 ppm	2.048	±50 ppm
MH14FAG-R 50.000000	M3H and MH	XO	±50 ppm	50	±50 ppm
MH16FAD-R 20.000000	M3H and MH	XO	±25 ppm	20	±25 ppm
MH16TAD-R 1.544000	M3H and MH	XO	±25 ppm	1.544	±25 ppm
MH16TAD-R 2.048000	M3H and MH	XO	±25 ppm	2.048	±25 ppm
MH23FAD-R 1.000000	M3H and MH	XO	±100 ppm	1	±100 ppm
MH23FAD-R 64.000000	M3H and MH	XO	±100 ppm	64	±100 ppm
MH23FCD-R 64.000000	M3H and MH	XO	±100 ppm	64	±100 ppm
MH23TAD-R 64.000000	M3H and MH	XO	±100 ppm	64	±100 ppm
MH24FAD 11.520000	M3H and MH	XO	±50 ppm	11.52	±50 ppm
MH24FCD-R 40.000000	M3H and MH	XO	±50 ppm	40	±50 ppm
MH41FAD-R 4.000000	M3H and MH	XO	±1000 ppm	4	±1000 ppm
MH43FAD-R 10.000000	M3H and MH	XO	±100 ppm	10	±100 ppm
MH43FAD-R 16.000000	M3H and MH	XO	±100 ppm	16	±100 ppm
MH43FAD-R 40.000000	M3H and MH	XO	±100 ppm	40	±100 ppm
MH43FAD-R 5.000000	M3H and MH	XO	±100 ppm	5	±100 ppm
MH43FAD-R 60.000000	M3H and MH	XO	±100 ppm	60	±100 ppm
MH43FDD-R 4.000000	M3H and MH	XO	±100 ppm	4	±100 ppm
MH43TDD 16.000000	M3H and MH	XO	±100 ppm	16	±100 ppm
MH43TDD 25.000000	M3H and MH	XO	±100 ppm	25	±100 ppm
MH44FAD 1.000000	M3H and MH	XO	±50 ppm	1	±50 ppm
MH44FAD 20.000000	M3H and MH	XO	±50 ppm	20	±50 ppm
MH44FAD-R 1.000000	M3H and MH	XO	±50 ppm	1	±50 ppm
MH44FAD-R 14.318180	M3H and MH	XO	±50 ppm	14.3182	±50 ppm
MH44FAD-R 16.000000	M3H and MH	XO	±50 ppm	16	±50 ppm
MH44FAD-R 20.000000	M3H and MH	XO	±50 ppm	20	±50 ppm
MH44FAD-R 36.918000	M3H and MH	XO	±50 ppm	36.918	±50 ppm
MH44FAD-R 40.000000	M3H and MH	XO	±50 ppm	40	±50 ppm
MH44FAD-R 49.140000	M3H and MH	XO	±50 ppm	49.14	±50 ppm
MH44TAG 24.000000	M3H and MH	XO	±50 ppm	24	±50 ppm
