首頁 泰藝晶振

X3AEEJNANF-26.000000-臺灣Taitien晶振-1612mm-26MHz

X3AEEJNANF-26.000000-臺灣Taitien晶振-1612mm-26MHzX3AEEJNANF-26.000000-臺灣Taitien晶振-1612mm-26MHz

產品簡介

X3AEEJNANF-26.000000-臺灣Taitien晶振-1612mm-26MHz,X3AEEJNANF-26.000000晶振,臺灣Taitien晶振,1612mm晶振,頻率26MHz,超小型晶振,高精度晶振,低老化晶振,石英晶體諧振器,四腳貼片晶振,智能手機晶振,無線網絡晶振,藍牙模塊晶振,辦公自動化晶振,多媒體影音設備晶振.






產品詳情

X3AEEJNANF-26.000000-臺灣Taitien晶振-1612mm-26MHz,X3AEEJNANF-26.000000晶振,臺灣Taitien晶振,1612mm晶振,頻率26MHz,超小型晶振,高精度晶振,低老化晶振,石英晶體諧振器,四腳貼片晶振,智能手機晶振,無線網絡晶振,藍牙模塊晶振,辦公自動化晶振,多媒體影音設備晶振.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

X3AEEJNANF-26.000000-臺灣Taitien晶振-1612mm-26MHz參數

Taitien晶振規格

單位

X3晶振

石英晶振基本條件

標準頻率

f_nom

26MHz

標準頻率，可提供其他頻率

儲存溫度

T_stg

-55℃~+125℃

裸存

工作溫度

T_use

-40℃~+105℃

標準溫度

激勵功率

DL

100μW Max.

推薦:1μW～100μW

頻率公差

f_— l

±20ppm
+25°C對于超出標準的規格說明,
請聯系我們以便獲取相關的信息

頻率溫度特征

f_tem

±20ppm

超出標準的規格請聯系我們.

負載電容

CL

12pF

超出標準說明,請聯系我們.

串聯電阻(ESR)

R1

150Ωmax


@25°C

頻率老化

f_age

±3×10-6/year Max.

+25°C,第一年

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

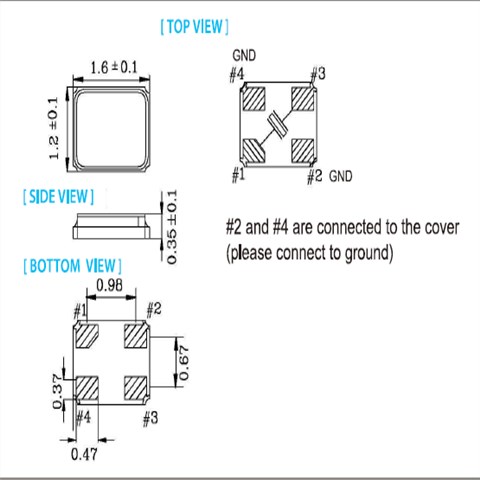

X3AEEJNANF-26.000000-臺灣Taitien晶振-1612mm-26MHz 規格圖

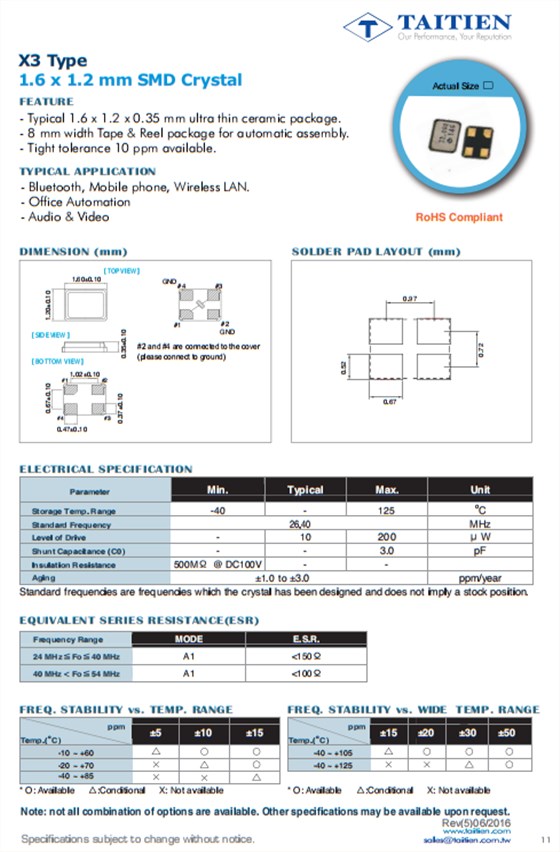

X3 1612

原廠編碼 生產廠家 型號 頻率 工作溫度 尺寸
X3AEEJNANF-27.000000 Taitien X3 27MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-26.000000 Taitien X3 26MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-25.000000 Taitien X3 25MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-27.120000 Taitien X3 27.12MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-28.000000 Taitien X3 28MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-29.000000 Taitien X3 29MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-30.000000 Taitien X3 30MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-38.400000 Taitien X3 38.4MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-38.400000 Taitien X3 38.4MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-38.400000 Taitien X3 38.4MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-26.000000 Taitien X3 26MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-26.000000 Taitien X3 26MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-26.000000 Taitien X3 26MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-27.000000 Taitien X3 27MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-27.000000 Taitien X3 27MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-29.000000 Taitien X3 29MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-27.320000 Taitien X3 27.32MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-27.120000 Taitien X3 27.12MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-27.120000 Taitien X3 27.12MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-30.000000 Taitien X3 30MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-30.000000 Taitien X3 30MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-33.000000 Taitien X3 33MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-38.400000 Taitien X3 38.4MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-38.400000 Taitien X3 38.4MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-38.400000 Taitien X3 38.4MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-40.000000 Taitien X3 40MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-40.000000 Taitien X3 40MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-40.000000 Taitien X3 40MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-48.000000 Taitien X3 48MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-48.000000 Taitien X3 48MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-48.000000 Taitien X3 48MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-26.000000 Taitien X3 26MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-26.000000 Taitien X3 26MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-26.000000 Taitien X3 26MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-27.000000 Taitien X3 27MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-40.000000 Taitien X3 27.12MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-30.000000 Taitien X3 30MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-30.000000 Taitien X3 30MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-30.000000 Taitien X3 30MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-38.400000 Taitien X3 38.4MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-38.400000 Taitien X3 38.4MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-38.400000 Taitien X3 38.4MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-40.000000 Taitien X3 40MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-46.000000 Taitien X3 46MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-44.000000 Taitien X3 44MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-48.000000 Taitien X3 48MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-48.000000 Taitien X3 48MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-52.000000 Taitien X3 52MHz -20°C ~ 70°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-27.000000 Taitien X3 27MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-27.000000 Taitien X3 27MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-27.000000 Taitien X3 27MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-27.120000 Taitien X3 27.12MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-27.120000 Taitien X3 27.12MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-27.120000 Taitien X3 27.12MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-30.000000 Taitien X3 30MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-30.000000 Taitien X3 30MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-30.000000 Taitien X3 30MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-38.400000 Taitien X3 38.4MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-38.400000 Taitien X3 38.4MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-38.400000 Taitien X3 38.4MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-48.000000 Taitien X3 48MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-48.000000 Taitien X3 48MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-48.000000 Taitien X3 48MHz -40°C ~ 105°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-26.000000 Taitien X3 26MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-26.000000 Taitien X3 26MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-26.000000 Taitien X3 26MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-27.000000 Taitien X3 27MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-27.000000 Taitien X3 27MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-27.000000 Taitien X3 27MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-27.120000 Taitien X3 27.12MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-27.120000 Taitien X3 27.12MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-27.120000 Taitien X3 27.12MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-30.000000 Taitien X3 30MHz -40°C ~ 85°C 0.063" L x 0.047" W (1.60mm x 1.20mm)

X3
