Silicon晶振550CD74M2500DGR光學模塊應用VCXO振蕩器

來源：金洛鑫瀏覽：- 發布日期：2023-04-27 16:36:16【大中小】

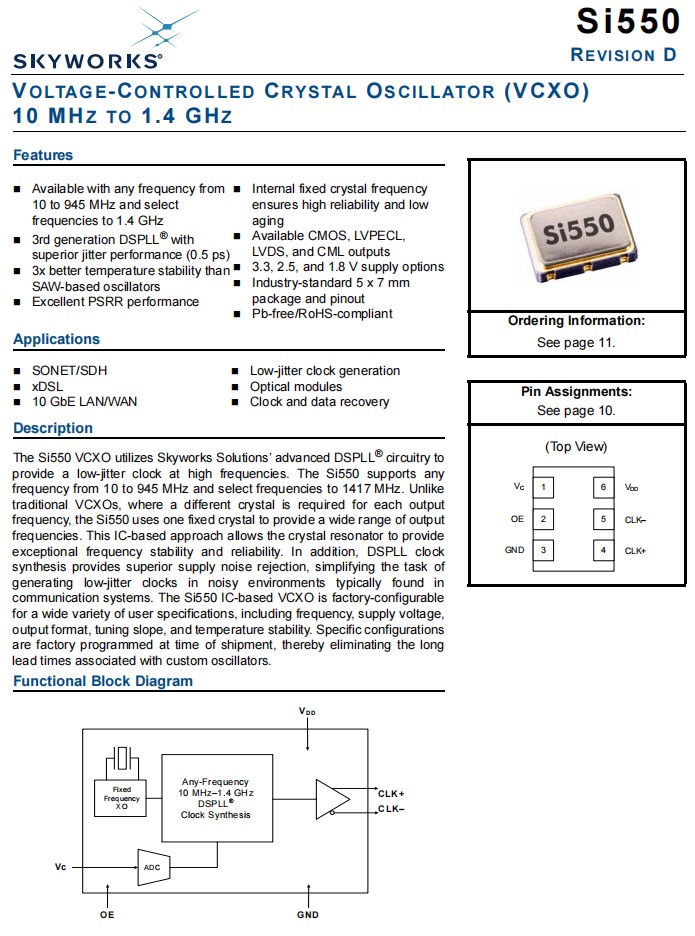

Silicon晶振型號Si550 VCXO壓控晶振利用天空解決方案的先進DSPLL®電路提供一個高頻低抖動時鐘。Si550支持從10MHz到945MHz的任何頻率，并選擇頻率到1417MHz。與傳統的VCXOs不同，每個輸出頻率都需要一個不同的晶體，而Si550有源晶振使用一個固定的晶體來提供一個大范圍的輸出頻率。這種基于集成電路的方法允許晶體諧振器提供特殊的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供了優越的電源噪聲抑制，簡化了在通信系統中常見的噪聲環境中產生低抖動時鐘的任務。基于Si550ic的VCXO振蕩器可在工廠中進行配置，適合各種用戶規格，包括頻率、電源電壓、輸出格式、調諧斜率和溫度穩定性。特定的配置是在裝運時進行工廠編程的，從而消除了與定制振蕩器相關的長交貨時間。Silicon晶振550CD74M2500DGR光學模塊應用VCXO振蕩器

原廠代碼	品牌	型號	頻率	電壓	頻率穩定度	包裝/封裝
535FB125M000DG	Silicon晶振	Si535	125MHz	2.5V	±20ppm	6-SMD, No Lead
536BB156M250DG	Silicon晶振	Si536	156.25MHz	3.3V	±20ppm	6-SMD, No Lead
536FB156M250DG	Silicon晶振	Si536	156.25MHz	2.5V	±20ppm	6-SMD, No Lead
536AB156M250DG	Silicon晶振	Si536	156.25MHz	3.3V	±20ppm	6-SMD, No Lead
536EB156M250DG	Silicon晶振	Si536	156.25MHz	2.5V	±20ppm	6-SMD, No Lead
536BB125M000DG	Silicon晶振	Si536	125MHz	3.3V	±20ppm	6-SMD, No Lead
536AB125M000DG	Silicon晶振	Si536	125MHz	3.3V	±20ppm	6-SMD, No Lead
535EB125M000DG	貼片石英晶振	Si535	125MHz	2.5V	±20ppm	6-SMD, No Lead
536EB125M000DG	Silicon晶振	Si536	125MHz	2.5V	±20ppm	6-SMD, No Lead
535BB125M000DG	Silicon晶振	Si535	125MHz	3.3V	±20ppm	6-SMD, No Lead
535BB156M250DG	Silicon晶振	Si535	156.25MHz	3.3V	±20ppm	6-SMD, No Lead
535FB156M250DG	Silicon晶振	Si535	156.25MHz	2.5V	±20ppm	6-SMD, No Lead
535AB125M000DG	Silicon晶振	Si535	125MHz	3.3V	±20ppm	6-SMD, No Lead
535AB156M250DG	Silicon晶振	Si535	156.25MHz	3.3V	±20ppm	6-SMD, No Lead
536FB125M000DG	Silicon晶振	Si536	125MHz	2.5V	±20ppm	6-SMD, No Lead
535EB156M250DG	Silicon晶振	Si535	156.25MHz	2.5V	±20ppm	6-SMD, No Lead
500DLAA125M000ACF	Silicon晶振	Si500D	125MHz	2.5V	±150ppm	6-SMD, No Lead
500DLAA200M000ACF	Silicon晶振	Si500D	200MHz	2.5V	±150ppm	6-SMD, No Lead
590AB70M6560DG	Silicon晶振	Si590	70.656MHz	3.3V	±25ppm	6-SMD, No Lead
590FA200M000DG	Silicon晶振	Si590	200MHz	2.5V	±50ppm	6-SMD, No Lead
590DA156M250DG	Silicon晶振	Si590	156.25MHz	3.3V	±50ppm	6-SMD, No Lead
591BB300M000DG	Silicon晶振	Si591	300MHz	3.3V	±25ppm	6-SMD, No Lead
550CD74M2500DGR	Silicon晶振	Si550	74.25MHz	3.3V	±50ppm	6-SMD, No Lead
514GBB000118AAG	Silicon晶振	Si514	156.25MHz	2.5V	±25ppm	6-SMD, No Lead
550AE100M000DGR	Silicon晶振	Si550	100MHz	3.3V	±20ppm	6-SMD, No Lead
550AE100M000DG	Silicon晶振	Si550	100MHz	3.3V	±20ppm	6-SMD, No Lead
