百利通亞陶晶振UX31系列編碼UX31F6203Z具有超低抖動性能的高性能CMOS貼片振蕩器
我們的超低抖動石英晶體振蕩器（UX系列）專為實現低至0.1ps的超低抖動而設計。該系列非常適合需要超低抖動時鐘源以實現高速數據傳輸的網絡和服務器系統。該系列不僅為系統工程師的設計提供了寬裕的性能，而且還提供了包括各種輸出邏輯和大小在內的選項。

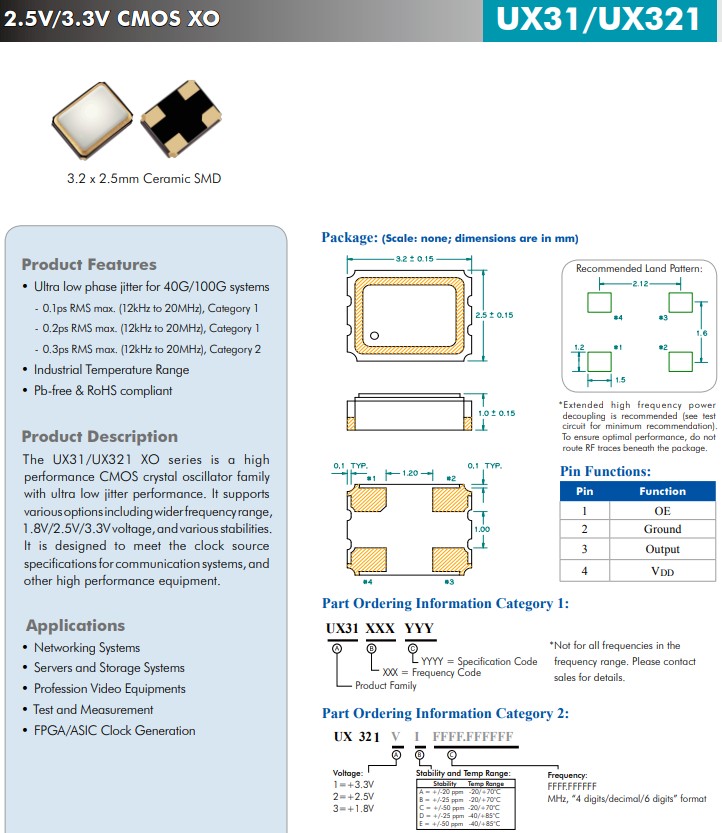

百利通亞陶晶振UX31/UX321 XO系列是具有超低抖動性能的高性能CMOS貼片振蕩器系列。小體積晶振尺寸3.2x2.5mm，它支持多種選擇，包括更寬的頻率范圍、1.8V/2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。
產品特點：
用于 40G/100G 系統的超低相位抖動
0.1ps RMS最大值。(12kHz至20MHz),1 類
0.2ps RMS最大值。(12kHz至20MHz),1 類
0.3ps RMS最大值。(12kHz至20MHz),2 類
工業溫度范圍
無鉛且符合RoHS標準
應用：網絡系統，服務器和存儲系統，專業視頻設備，測試和測量，FPGA/ASIC時鐘生成
百利通亞陶晶振UX31系列編碼UX31F6203Z具有超低抖動性能的高性能CMOS貼片振蕩器
| HX3127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm |
| HX21480001 | Diodes Incorporated | SaRonix-eCera™ HX | 48MHz | ±50ppm |
| HX21480001 | Diodes Incorporated | SaRonix-eCera™ HX | 48MHz | ±50ppm |
| HX21480001 | 亞陶晶振 | SaRonix-eCera™ HX | 48MHz | ±50ppm |
| NX7031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| NX7031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| NX7031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| HX2127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm |
| HX2127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm |
| HX2127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm |
| SHPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SHPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SHPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SQPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SQPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SQPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SN10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm |
| SN10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm |
| SN10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm |
| SQA000001 | Diodes Incorporated | SaRonix-eCera™ SQ | 100MHz | ±50ppm |
| SQA000001 | Diodes Incorporated | SaRonix-eCera™ SQ | 100MHz | ±50ppm |
| SQA000001 | Diodes Incorporated | SaRonix-eCera™ SQ | 100MHz | ±50ppm |
| NX53D3301Z | Diodes Incorporated | SaRonix-eCera™ NX | 133.333333MHz | ±50ppm |
| NX53D3301Z | Diodes Incorporated | SaRonix-eCera™ NX | 133.333333MHz | ±50ppm |
| NX53D3301Z | Diodes Incorporated | SaRonix-eCera™ NX | 133.333333MHz | ±50ppm |
| JT2553P0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb |
百利通亞陶晶振UX31系列編碼UX31F6203Z具有超低抖動性能的高性能CMOS貼片振蕩器
產品參數
| 類別 | 超低抖動 XO |
|---|---|
| 產品系列 | UX3 |
| 合規性（僅汽車支持 PPAP） | 標準 |
| 頻率范圍 (MHz) | 40至162 |
| 抖動均方根 (ps) | <0.1 至 0.3 |
| 穩定性 (PPM) | 20 到 50 |
| 包裝尺寸（毫米） | 3.2x2.5x1.0貼片晶振 |
| 包裝類型 | 陶瓷縫 |
| 輸出邏輯 | CMOS |
| 電源電壓 (V) | 3.3, 2.5 |
| 墊 | 4 |
| JT2553P0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb |
| JT2553P0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb |
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm |
| PXC500007 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm |
| PXC500007 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm |
百利通亞陶晶振UX31系列編碼UX31F6203Z具有超低抖動性能的高性能CMOS貼片振蕩器
我們提供一流的晶體 (Xtal) 和石英振蕩器 (XO)，針對您的設計要求進行了優化。
我們廣泛的晶體和晶體振蕩器提供：輸出頻率范圍從 kHz到GHz
完整的輸出組合：CMOS、CML、LVPECL、LVDS、削波正弦波和HCSL
完整的 XO 產品組合，包括標準 XO、VCXO、TCXO 到超低抖動和高溫XO
從1.0V到3.3V的多個電壓范圍（甚至是傳統的 5V）
大量 SMT 封裝選項組合，可滿足您的封裝要求
| UX31/UX321 | 20~50 | 3.2x2.5x1.0 | 陶瓷縫 | 40 至 162 | <0.1~ 0.3 | CMOS | 3.32.5 | 4 | UX3 | 2.5V/3.3V、3.2x2.5mm、超低抖動 CMOS 晶體振蕩器 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| UX51/UX501 | 20~50 | 5.0 x 3.2 x 1.2 | 陶瓷縫 | 40 至 162 | <0.1~ 0.3 | CMOS | 3.32.5 | 4 | UX5 | 2.5V/3.3V、5.0x3.2mm、超低抖動 CMOS 晶體振蕩器 | |
| UX52/UX502 | 20~50 | 5.0 x 3.2 x 1.2 | 陶瓷縫 | 100 至 162 (2.5V/3.3V) | <0.1~ 0.3 | LVPECL | 3.32.5 | 6 | UX5 | 2.5V/3.3V、5.0x3.2mm、超低抖動 LVPECL 晶體振蕩器 | |
| UX53/UX503 | 20~50 | 5.0 x 3.2 x 1.2 | 陶瓷縫 | 100 至 162 (2.5V/3.3V) | <0.1~ 0.3 | LVDS | 3.32.5 | 6 | UX5 | 2.5V/3.3V、5.0x3.2mm、超低抖動 LVDS 晶體振蕩器 | |
| UX71/UX701 | 20~50 | 7.0 x 5.0 x 1.4 | 陶瓷縫 | 40 至 162 | <0.1~ 0.3 | CMOS | 3.32.5 | 4 | UX7 | 2.5V/3.3V、7.0x5.0mm、超低抖動 CMOS 晶體振蕩器 | |
| UX72/UX702 | 20~50 | 7.0 x 5.0 x 2.0 | 陶瓷縫 | 100 至 162 (2.5V/3.3V) | <0.1~ 0.3 | LVPECL | 3.32.5 | 6 | UX7 | 2.5V/3.3V、7.0x5.0mm、超低抖動 LVPECL 晶體振蕩器 | |
| UX73/UX703 | 20~50 | 7.0 x 5.0 x 2.0 | 陶瓷縫 | 100 至 162 (2.5V/3.3V) | <0.1~ 0.3 | LVDS | 3.32.5 | 6 | UX7 | 2.5V/3.3V、7.0x5.0mm、超低抖動 LVDS 晶體振蕩器 |
