NKG小體積晶振,S3M40.0000F18M23-EXT,6G移動無線電晶振
頻率：40MHZ
尺寸：3.2×2.5×0.8mm
NKG小體積晶振,S3M40.0000F18M23-EXT,6G移動無線電晶振,NKG晶振,S3M進口晶振,無源晶振,S3M40.0000F18M23-EXT晶振,3225mm晶振,四腳封裝晶振,貼片石英晶振,石英晶體諧振器,頻率40MHz,負載18pF,頻率容差20ppm,工作溫度-40~85°C,小體積晶振,高可靠性晶振,低老化晶振,6G移動無線電晶振,便攜式設備晶振,USB存儲設備晶振,藍牙模塊晶振.
NKG小體積晶振,S3M40.0000F18M23-EXT,6G移動無線電晶振,NKG晶振,S3M進口晶振,無源晶振,S3M40.0000F18M23-EXT晶振,3225mm晶振,四腳封裝晶振,貼片石英晶振,石英晶體諧振器,頻率40MHz,負載18pF,頻率容差20ppm,工作溫度-40~85°C,小體積晶振,高可靠性晶振,低老化晶振,6G移動無線電晶振,便攜式設備晶振,USB存儲設備晶振,藍牙模塊晶振.
NKG小體積晶振,S3M40.0000F18M23-EXT,6G移動無線電晶振特點：

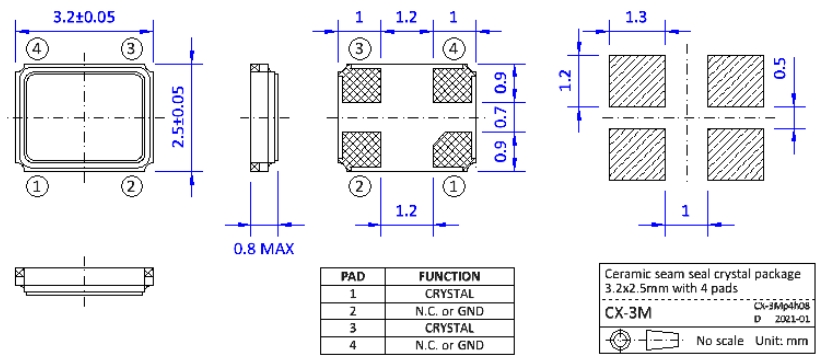

●微型包裝尺寸3.2 x 2.5x 0.7mm與4個墊
●優異的耐熱性和抗震性
●真空密封，可靠性高，老化率低
●符合AEC-Q200標準的汽車級產品可供選擇

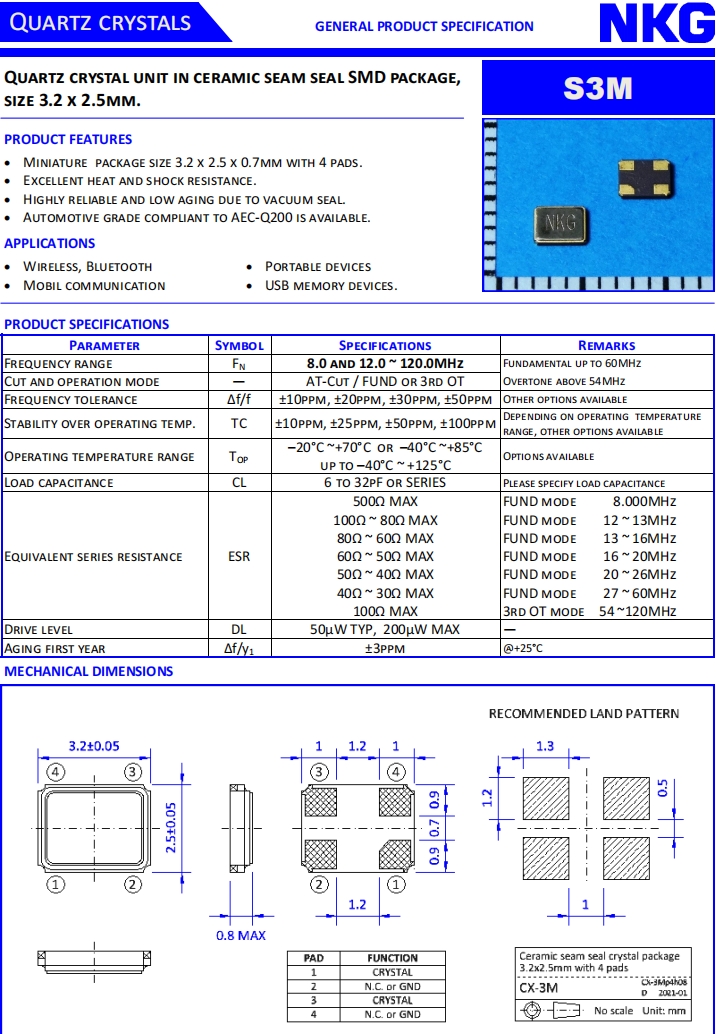

NKG小體積晶振,S3M40.0000F18M23-EXT,6G移動無線電晶振規格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
40MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±20ppm
Other options available
Stability over operating temp.
TC
±30ppm
Depending on operating temperature range, other options available
Operating temperature range
TOP
–40°C ~+85°C
Options available
Load capacitance
CL
18pF
Please specify load capacitance
Equivalent series resistance
ESR
40Ω~30Ω MAX
FUND MODE 27~ 60MHz
Drive level
DL
50µW TYP, 200µW MAX
-
Aging first year
Δf/y1
±3ppm
@+25°C
