416F52022CKR-52.000MHz-歐美進口晶振-8pf

頻率：52MHz

尺寸：1.6mm x 1.2mm

416F52022CKR-52.000MHz-歐美進口晶振-8pf,美國西迪斯晶振,416無源晶振,416F52022CKR晶振,頻率52.000MHz,歐美進口晶振,負載8pf,工作溫度-20~70°C,四腳貼片晶振,超小型晶振,可穿戴設備晶振,電腦外圍設備晶振,藍牙模塊晶振,USB接口晶振,筆記本電腦晶振.

訂購熱線：0755-27837162

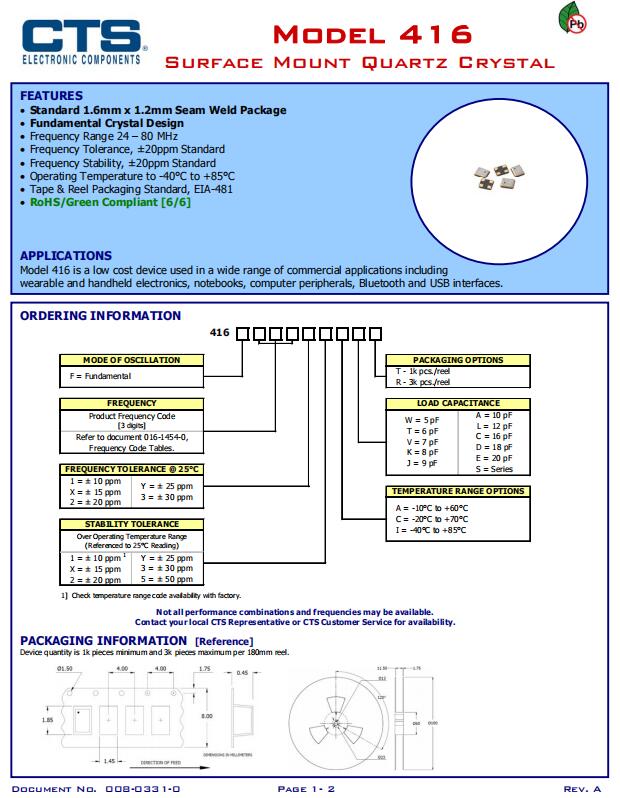

416F52022CKR-52.000MHz-歐美進口晶振-8pf 特征

•標準1.6mm x 1.2mm焊接封裝基本晶體設計

•.頻率范圍24 - 80MHz 頻率公差±20ppm標準 頻率穩定性±20ppm標準 工作溫度-40℃~ +85℃

•穩定的頻率過溫和驅動電平磁帶和卷軸包裝標準, EIA-481 符合RoHS/綠色標準

•416型是一種低成本設備，廣泛用于商業應用，包括可穿戴和手持電子產品，筆記本電腦，電腦外圍設備，藍牙和USB接口.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

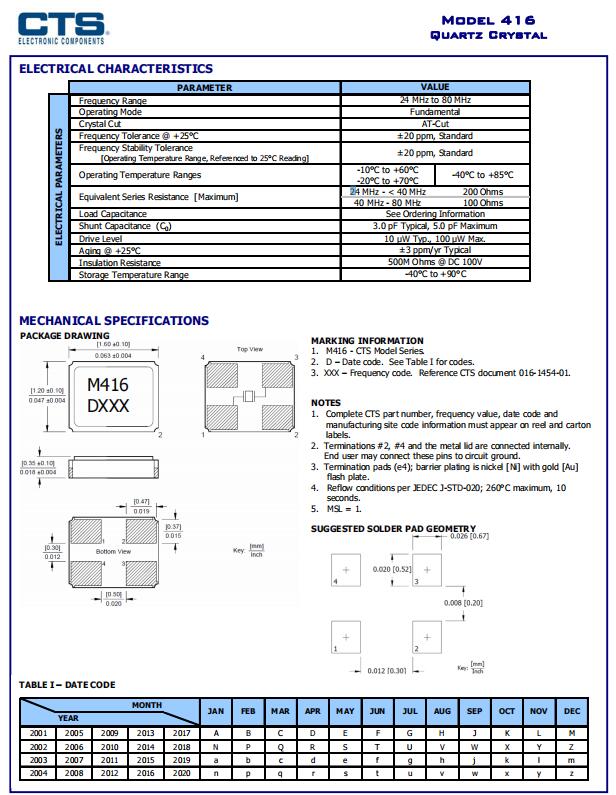

416F52022CKR-52.000MHz-歐美進口晶振-8pf 參數

項目			數值
頻率			52MHz
操作模式			Fundamental
晶體切割			AT-Cut
工作溫度			-20°C to +70°C
保存溫度			-40°C to +90°C
頻率公差 @ +25°C			± 20PPM
工作溫度范圍內的頻率穩定性 ( ref. to +25°C)			± 20PPM
等效串聯電阻(R1)			100 Ω
并聯電容 (C0)			3.0pF Typical, 5.0pF Maximum
負載電容 (CL)			8 pF
激勵功率			100 μW Max
老化 @ +25°C			±3ppm/yr Typical
絕緣電阻			500M Ohms @ DC 100V

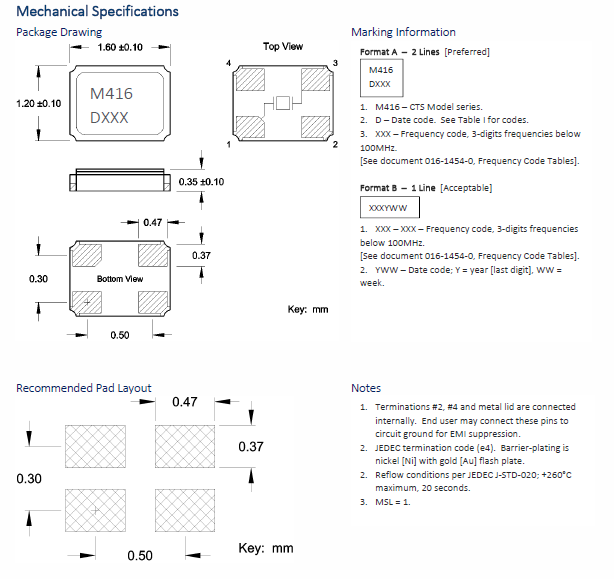

416F52022CKR-52.000MHz-歐美進口晶振-8pf 尺寸圖

原廠編碼生產廠家型號頻率頻率穩定度頻率偏差負載電容 ESR電阻工作溫度

416F26022CKR CTS 晶振 416 26MHz ±20ppm ±20ppm 8pF 200 Ohm -20°C ~ 70°C

416F27022CKR CTS 晶振 416 27MHz ±20ppm ±20ppm 8pF 200 Ohm -20°C ~ 70°C

416F48022CKR CTS 晶振 416 48MHz ±20ppm ±20ppm 8pF 100 Ohm -20°C ~ 70°C

416F52022CKR CTS 晶振 416 52MHz ±20ppm ±20ppm 8pF 100 Ohm -20°C ~ 70°C

416F24022IKR CTS 晶振 416 24MHz ±20ppm ±20ppm 8pF 200 Ohm -40°C ~ 85°C

416F32022IKR CTS 晶振 416 32MHz ±20ppm ±20ppm 8pF 200 Ohm -40°C ~ 85°C

416F48022IKR CTS 晶振 416 48MHz ±20ppm ±20ppm 8pF 100 Ohm -40°C ~ 85°C

416F52022IKR CTS 晶振 416 52MHz ±20ppm ±20ppm 8pF 100 Ohm -40°C ~ 85°C

416F32022CKR CTS 晶振 416 32MHz ±20ppm ±20ppm 8pF 200 Ohm -20°C ~ 70°C

416F30022CKR CTS 晶振 416 30MHz ±20ppm ±20ppm 8pF 200 Ohm -20°C ~ 70°C

416F36022CKR CTS 晶振 416 36MHz ±20ppm ±20ppm 8pF 200 Ohm -20°C ~ 70°C

416F40022CKR CTS 晶振 416 40MHz ±20ppm ±20ppm 8pF 100 Ohm -20°C ~ 70°C

416F44022CKR CTS 晶振 416 44MHz ±20ppm ±20ppm 8pF 100 Ohm -20°C ~ 70°C

416F26022IKR CTS 晶振 416 26MHz ±20ppm ±20ppm 8pF 200 Ohm -40°C ~ 85°C

416F36022IKR CTS 晶振 416 36MHz ±20ppm ±20ppm 8pF 200 Ohm -40°C ~ 85°C

416F40022IKR CTS 晶振 416 40MHz ±20ppm ±20ppm 8pF 100 Ohm -40°C ~ 85°C

416F24011AAR CTS晶振 416 24MHz ±10ppm ±10ppm 10pF 200 Ohm -10°C ~ 60°C

416F24011ADR CTS晶振 416 24MHz ±10ppm ±10ppm 18pF 200 Ohm -10°C ~ 60°C

416F24011AKR CTS晶振 416 24MHz ±10ppm ±10ppm 8pF 200 Ohm -10°C ~ 60°C

416F24011ALR CTS晶振 416 24MHz ±10ppm ±10ppm 12pF 200 Ohm -10°C ~ 60°C

416F24011CAR CTS晶振 416 24MHz ±10ppm ±10ppm 10pF 200 Ohm -20°C ~ 70°C

416F24011CDR CTS晶振 416 24MHz ±10ppm ±10ppm 18pF 200 Ohm -20°C ~ 70°C

416F24011CKR CTS晶振 416 24MHz ±10ppm ±10ppm 8pF 200 Ohm -20°C ~ 70°C

416F24011CLR CTS晶振 416 24MHz ±10ppm ±10ppm 12pF 200 Ohm -20°C ~ 70°C

416F24011CTR CTS晶振 416 24MHz ±10ppm ±10ppm 6pF 200 Ohm -20°C ~ 70°C

416F240X3AAR CTS晶振 416 24MHz ±30ppm ±15ppm 10pF 200 Ohm -10°C ~ 60°C

416F240X3ADR CTS晶振 416 24MHz ±30ppm ±15ppm 18pF 200 Ohm -10°C ~ 60°C

416F240X3AKR CTS晶振 416 24MHz ±30ppm ±15ppm 8pF 200 Ohm -10°C ~ 60°C

416F240X3ALR CTS晶振 416 24MHz ±30ppm ±15ppm 12pF 200 Ohm -10°C ~ 60°C

416F240X3ASR CTS晶振 416 24MHz ±30ppm ±15ppm Series 200 Ohm -10°C ~ 60°C

416F240X3ATR CTS晶振 416 24MHz ±30ppm ±15ppm 6pF 200 Ohm -10°C ~ 60°C

416F240X3CAR CTS晶振 416 24MHz ±30ppm ±15ppm 10pF 200 Ohm -20°C ~ 70°C

416F240X3CDR CTS晶振 416 24MHz ±30ppm ±15ppm 18pF 200 Ohm -20°C ~ 70°C

416F240X3CKR CTS晶振 416 24MHz ±30ppm ±15ppm 8pF 200 Ohm -20°C ~ 70°C

416F240X3CLR CTS晶振 416 24MHz ±30ppm ±15ppm 12pF 200 Ohm -20°C ~ 70°C

416F240X3CSR CTS晶振 416 24MHz ±30ppm ±15ppm Series 200 Ohm -20°C ~ 70°C

416F240X3CTR CTS晶振 416 24MHz ±30ppm ±15ppm 6pF 200 Ohm -20°C ~ 70°C

416F240XXAAR CTS晶振 416 24MHz ±15ppm ±15ppm 10pF 200 Ohm -10°C ~ 60°C

416F240XXADR CTS晶振 416 24MHz ±15ppm ±15ppm 18pF 200 Ohm -10°C ~ 60°C

416F240XXAKR CTS晶振 416 24MHz ±15ppm ±15ppm 8pF 200 Ohm -10°C ~ 60°C

416F240XXALR CTS晶振 416 24MHz ±15ppm ±15ppm 12pF 200 Ohm -10°C ~ 60°C

416F240XXASR CTS晶振 416 24MHz ±15ppm ±15ppm Series 200 Ohm -10°C ~ 60°C

416F240XXATR CTS晶振 416 24MHz ±15ppm ±15ppm 6pF 200 Ohm -10°C ~ 60°C

416F240XXCAR CTS晶振 416 24MHz ±15ppm ±15ppm 10pF 200 Ohm -20°C ~ 70°C

416F240XXCDR CTS晶振 416 24MHz ±15ppm ±15ppm 18pF 200 Ohm -20°C ~ 70°C

416F240XXCKR CTS晶振 416 24MHz ±15ppm ±15ppm 8pF 200 Ohm -20°C ~ 70°C

416F240XXCLR CTS晶振 416 24MHz ±15ppm ±15ppm 12pF 200 Ohm -20°C ~ 70°C

416F240XXCSR CTS晶振 416 24MHz ±15ppm ±15ppm Series 200 Ohm -20°C ~ 70°C

416F240XXCTR CTS晶振 416 24MHz ±15ppm ±15ppm 6pF 200 Ohm -20°C ~ 70°C

416F25011AAR CTS晶振 416 25MHz ±10ppm ±10ppm 10pF 200 Ohm -10°C ~ 60°C

416F25011ADR CTS晶振 416 25MHz ±10ppm ±10ppm 18pF 200 Ohm -10°C ~ 60°C

416F25011AKR CTS晶振 416 25MHz ±10ppm ±10ppm 8pF 200 Ohm -10°C ~ 60°C

416F25011ALR CTS晶振 416 25MHz ±10ppm ±10ppm 12pF 200 Ohm -10°C ~ 60°C

416F25011ASR CTS晶振 416 25MHz ±10ppm ±10ppm Series 200 Ohm -10°C ~ 60°C

416F25011ATR CTS晶振 416 25MHz ±10ppm ±10ppm 6pF 200 Ohm -10°C ~ 60°C

416F25011CAR CTS晶振 416 25MHz ±10ppm ±10ppm 10pF 200 Ohm -20°C ~ 70°C

416F25011CDR CTS晶振 416 25MHz ±10ppm ±10ppm 18pF 200 Ohm -20°C ~ 70°C

416F25011CKR CTS晶振 416 25MHz ±10ppm ±10ppm 8pF 200 Ohm -20°C ~ 70°C

416F52022CKR-52.000MHz-歐美進口晶振-8pf 規格書與內部識別碼
