CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振

頻率：27MHZ

尺寸：13.2mm x 5mm

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振,CTS晶振,歐美進口晶振,ATSSMGL石英貼片晶振,GL270F23IDT晶振,無源晶振,頻率27MHz,負載18pF,頻率穩定性30ppm,工作溫度-40~85°C,高穩定性晶振,低成本晶振,6G網絡應用晶振,通訊設備晶振,數碼相機晶振,工業設備晶振.






訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

CTS

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振,CTS晶振,歐美進口晶振,ATSSMGL石英貼片晶振,GL270F23IDT晶振,無源晶振,頻率27MHz,負載18pF,頻率穩定性30ppm,工作溫度-40~85°C,高穩定性晶振,低成本晶振,6G網絡應用晶振,通訊設備晶振,數碼相機晶振,工業設備晶振.

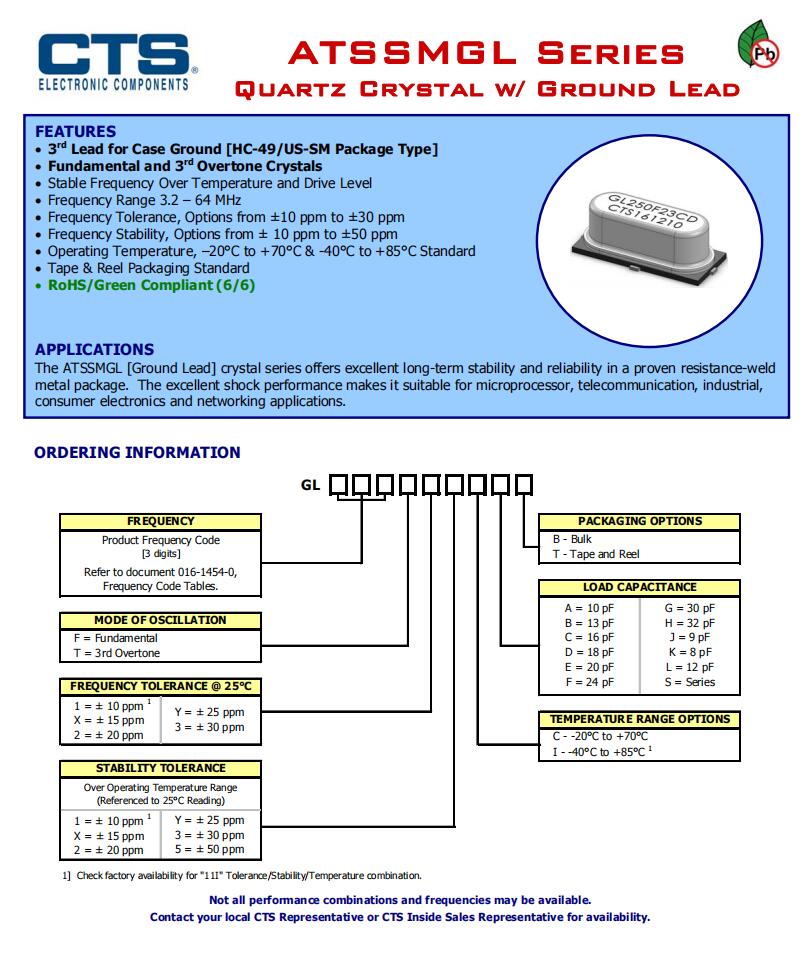

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振特征

•外殼接地的第三根導線[HC-49/US-SM封裝類型]

•基本和第三泛音晶體

•穩定的頻率超過溫度和驅動電平

•頻率范圍3.2 - 64MHz

•頻率公差，從±10ppm到±30ppm的選項

•頻率穩定性，從±10ppm到±50ppm的選項

•工作溫度，-20°C至+70°C和-40°C至+85°C標準

•膠帶和卷軸包裝可用

•符合RoHS/綠色標準[6/6]

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振參數表

項目 數值
頻率 27MHz
操作模式 Fundamental
晶體切割 AT-Cut
工作溫度  -40°C to +85°C
保存溫度   -40°C to +85°C
頻率公差 @ +25°C ± 20PPM

 工作溫度范圍內的頻率穩定性 ( ref. to

+25°C)

± 30PPM
等效串聯電阻(R1) 30 Ω
  并聯電容 (C0) 7.0pF Maximum
負載電容 (CL) 18pF
激勵功率 1000 μW Max
老化 @ +25°C ±3ppm/yr Typical

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

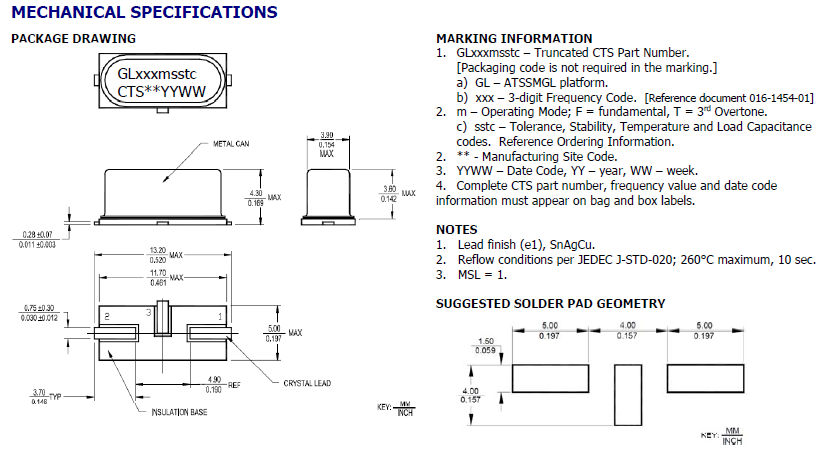

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振尺寸圖

ATSSMGL 12.3-5

ATSSMGL

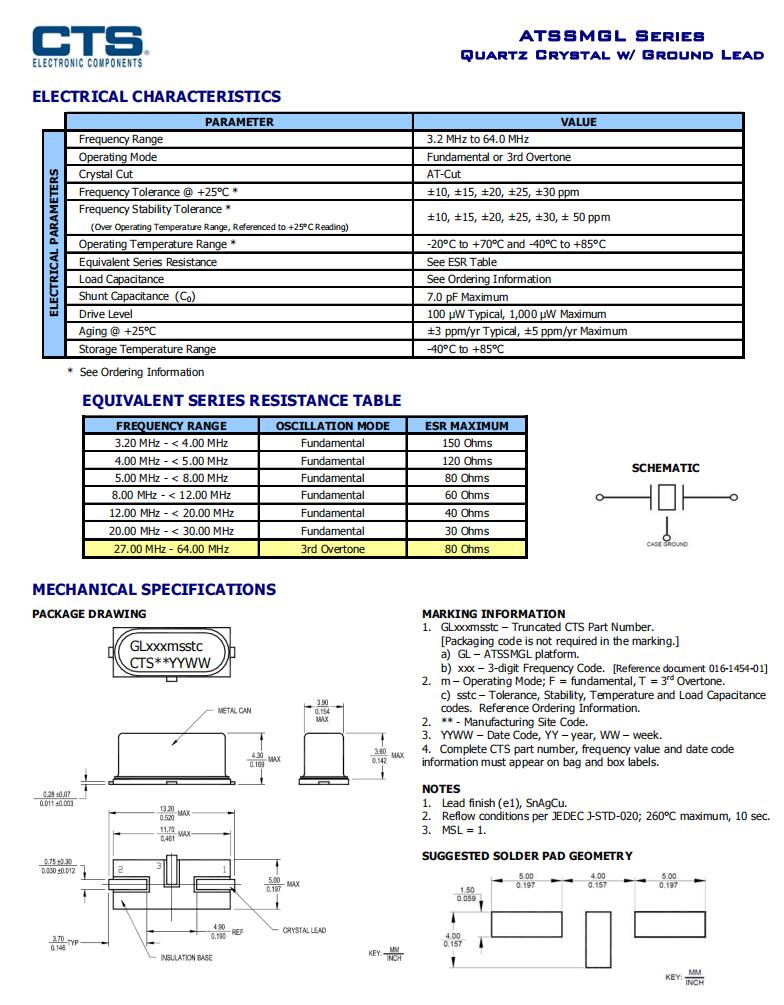

ATSSMGL-1

原廠編碼 生產廠家 型號 頻率 頻率穩定度 頻率偏差 負載電容 ESR電阻 工作溫度
GL240F23CDT CTS 晶振 ATSSMGL 24MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL240F23CET CTS 晶振 ATSSMGL 24MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL240F33CDT CTS 晶振 ATSSMGL 24MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL240F33CET CTS 晶振 ATSSMGL 24MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL240F35CDT CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL240F35CET CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL240F35IDT CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL240F35IET CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL24CF23CDT CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL24CF23CET CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL24CF33CDT CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL24CF33CET CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL24CF35CDT CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL24CF35CET CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL24CF35IDT CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL24CF35IET CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL250F23CDT CTS 晶振 ATSSMGL 25MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL250F23CET CTS 晶振 ATSSMGL 25MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL250F33CDT CTS 晶振 ATSSMGL 25MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL250F33CET CTS 晶振 ATSSMGL 25MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL250F35CDT CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL250F35CET CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL250F35IDT CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL250F35IET CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL270F23CDT CTS 晶振 ATSSMGL 27MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL270F23CET CTS 晶振 ATSSMGL 27MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL270F33CDT CTS 晶振 ATSSMGL 27MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL270F33CET CTS 晶振 ATSSMGL 27MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL270F35CDT CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL270F35CET CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL270F35IDT CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL270F35IET CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL042F23CDT CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL042F23CET CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL042F33CDT CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL042F33CET CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL042F35CDT CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL042F35CET CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL042F35IDT CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL042F35IET CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL044F23CDT CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL044F23CET CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL044F33CDT CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL044F33CET CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL044F35CDT CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL044F35CET CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL044F35IDT CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL044F35IET CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL045F23CDT CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL045F23CET CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL045F33CDT CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL045F33CET CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL045F35CDT CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL045F35CET CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL045F35IDT CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL045F35IET CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL049F23CDT CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL049F23CET CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL049F33CDT CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL049F33CET CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL049F35CDT CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL049F35CET CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL049F35IDT CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL049F35IET CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL050F23CDT CTS 晶振 ATSSMGL 5MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL050F23CET CTS 晶振 ATSSMGL 5MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL050F33CDT CTS 晶振 ATSSMGL 5MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL050F33CET CTS 晶振 ATSSMGL 5MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL050F35CDT CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL050F35CET CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL050F35IDT CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL050F35IET CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL060F23CDT CTS 晶振 ATSSMGL 6MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL060F23CET CTS 晶振 ATSSMGL 6MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL060F33CDT CTS 晶振 ATSSMGL 6MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL060F33CET CTS 晶振 ATSSMGL 6MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL060F35CDT CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL060F35CET CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL060F35IDT CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL060F35IET CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL061F23CDT CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL061F23CET CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL061F33CDT CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL061F33CET CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL061F35CDT CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL061F35CET CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL061F35IDT CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL061F35IET CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL073F23CDT CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL073F23CET CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL073F33CDT CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL073F33CET CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL073F35CDT CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL073F35CET CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL073F35IDT CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL073F35IET CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL080F23CDT CTS 晶振 ATSSMGL 8MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL080F23CET CTS 晶振 ATSSMGL 8MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL080F33CDT CTS 晶振 ATSSMGL 8MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL080F33CET CTS 晶振 ATSSMGL 8MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL080F35CDT CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL080F35CET CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL080F35IDT CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL080F35IET CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL092F23CDT CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL092F23CET CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL092F33CDT CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL092F33CET CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL092F35CDT CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL092F35CET CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL092F35IDT CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL092F35IET CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL098F23CDT CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL098F23CET CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL098F33CDT CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL098F33CET CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL098F35CDT CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL098F35CET CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL098F35IDT CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL098F35IET CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL100F23CDT CTS 晶振 ATSSMGL 10MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL100F23CET CTS 晶振 ATSSMGL 10MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL100F33CDT CTS 晶振 ATSSMGL 10MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL100F33CET CTS 晶振 ATSSMGL 10MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL100F35CDT CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL100F35CET CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL100F35IDT CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL100F35IET CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL102F23CDT CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL102F23CET CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL102F33CDT CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL102F33CET CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL102F35CDT CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL102F35CET CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL102F35IDT CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL102F35IET CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL111F23CDT CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL111F23CET CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL111F33CDT CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL111F33CET CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL111F35CDT CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL111F35CET CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL111F35IDT CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL111F35IET CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL120F23CDT CTS 晶振 ATSSMGL 12MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL120F23CET CTS 晶振 ATSSMGL 12MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL120F33CDT CTS 晶振 ATSSMGL 12MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL120F33CET CTS 晶振 ATSSMGL 12MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL120F35CDT CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL120F35CET CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL120F35IDT CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL120F35IET CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL122F23CDT CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL122F23CET CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL122F33CDT CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL122F33CET CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL122F35CDT CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL122F35CET CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL122F35IDT CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL122F35IET CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL130F23CDT CTS 晶振 ATSSMGL 13MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL130F23CET CTS 晶振 ATSSMGL 13MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL130F33CDT CTS 晶振 ATSSMGL 13MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL130F33CET CTS 晶振 ATSSMGL 13MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL130F35CDT CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL130F35CET CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL130F35IDT CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL130F35IET CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL135F23CDT CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL135F23CET CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL135F33CDT CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL135F33CET CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL135F35CDT CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL135F35CET CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL135F35IDT CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL135F35IET CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL143F23CDT CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL143F23CET CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL143F33CDT CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL143F33CET CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL143F35CDT CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL143F35CET CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL143F35IDT CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL143F35IET CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL147F23CDT CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL147F23CET CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL147F33CDT CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL147F33CET CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL147F35CDT CTS 晶振 ATSSMGL 14.7456MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL147F35CET CTS 晶振 ATSSMGL 14.7456MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C







JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫電子有限公司

聯系人：茹紅青

手機：13510569637

電話：0755-27837162

QQ號：657116624

微信公眾號：CITIZENCRYSTAL

搜狐公眾號：晶振石英晶振NDK晶振

郵箱：jinluodz@163.com

地址：深圳市寶安區41區甲岸路19號

網址：http://www.jftz888.com/

相關的產品 / Related Products

12.85054晶振,KX–13T格耶晶振,7050高精度晶振
12.85054晶振,KX–13T格耶晶振,7050高精度晶振

12.85054晶振,KX–13T格耶晶振,7050高精度晶振,其精準頻率輸出是保障藍牙通信距離與音頻播放質量的核心,廣泛應用于TWS耳機,智能音箱等產品,助力設備實現低延遲數據交互與高清音頻輸出.KX–13T格耶晶振賦能工業物聯網應用晶振,憑借多泛音模式,寬溫適應與高可靠性,在PLC,工業路由器,傳感器節點中承擔頻率核心職責,確保惡劣工業環境下設備的連續穩定運行.


DSC6001JA3B-001.0000,Microchip晶體振蕩器,2520小型封裝晶振
DSC6001JA3B-001.0000,Microchip晶體振蕩器,2520小型封裝晶振

DSC6001JA3B-001.0000,Microchip晶體振蕩器,2520小型封裝晶振,以1MHz精準頻率為藍牙模塊,傳感器節點,車載信息娛樂系統提供穩定時序參考,CMOS輸出晶振模式確保信號傳輸?shù)牡蛽p耗與高完整性.產品支持1.71V~3.63V寬電壓范圍,適配電池供電設備的低功耗需求,同時通過嚴苛的環境可靠性測試,在溫濕度劇烈變化,振動干擾等復雜工況下仍能穩定工作.


511BBA100M000AAGR,LVDS差分輸出晶振,7050思佳訊進口晶振
511BBA100M000AAGR,LVDS差分輸出晶振,7050思佳訊進口晶振

511BBA100M000AAGR,LVDS差分輸出晶振,7050思佳訊進口晶振,100MHz頻率搭配LVDS差分輸出,能完美滿足服務器,交換機,路由器等網絡設備的時鐘同步需求.7050封裝兼顧小型化與穩定性,可嵌入FPGA,高速ADC/DAC模塊,有效減少數據傳輸誤碼率,在5G通信基站,數據中心存儲設備及北斗定位終端中發揮核心時序控制作用.


JLX-PD

金洛鑫產品系列

PRODUCT LINE

石英晶振
QuartzCrystal

貼片晶振
SMDcrystal

諧振器濾波器
Resonator

溫補晶振
TCXOcrystal

32.768K
32768Kcrystal

霧化片
AtomizationPiece

智能穿戴

車載安防

通訊網絡

智能玩具

金洛鑫聯系方式
咨詢熱線：0755-27837162

手機：13510569637

QQ：QQ

郵箱：jinluodz@163.com

地址：廣東省深圳市寶安區寶安41區甲岸路

宣恩县| 竹山县| 鞍山市| 台东县| 邹城市| 沙雅县| 沛县| 宁强县| 凌海市| 明星| 酒泉市| 碌曲县| 壤塘县| 咸阳市| 兴文县| 汉中市| 乃东县| 雅安市| 淮安市| 河北区| 绥宁县| 淳安县| 恭城| 大竹县| 宁河县| 怀远县| 旬阳县| 巴彦县| 罗定市| 鄱阳县| 漾濞| 大连市| 阜南县| 镶黄旗| 祁东县| 山东省| 灌云县| 陇川县| 岳池县| 开化县| 斗六市|
