DSC6101JI2A-024.0000,DSC6100小型貼片晶振,MEMS振蕩器

頻率：24MHz

尺寸：2.50mm x 2.00mm

DSC6101JI2A-024.0000,DSC6100小型貼片晶振,MEMS振蕩器,延續DSC6100系列"小型化"核心設計,采用超微型表面貼裝封裝(如3225封裝,即3.2mm×2.5mm),封裝高度僅0.8mm左右,相較于同頻率石英晶振,占位面積減少30%以上,能輕松嵌入PCB板空間緊張的設備,如智能穿戴設備,小型工業傳感器晶振,物聯網(IoT)模塊等.同時,產品內置完整振蕩電路與頻率校準單元,無需外部匹配電容,電阻等元件,簡化硬件設計流程,降低物料成本與PCB布局復雜度,縮短產品研發周期.

訂購熱線：0755-27837162

JLX-1

DSC6101JI2A-024.0000,DSC6100小型貼片晶振,MEMS振蕩器

作為典型的MEMS振蕩器,DSC6101JI2A-024.0000依托微機電加工工藝,具備傳統石英晶振難以比擬的特性.首先,抗沖擊與抗振動能力更強,可承受高達5000g的沖擊(短時間)與20g的持續振動,避免因機械應力導致的頻率偏移或器件損壞,適配汽車電子,小型攜帶器晶振等易受振動影響的場景,其次,頻率溫度穩定度表現優異,典型值低至±25ppm(工作溫度范圍內),且溫漂曲線更平緩,在-40℃至+85℃工業級溫域內,能持續維持頻率輸出的一致性,此外,MEMS結構無石英晶體的"老化"問題,長期使用中頻率漂移率更低,延長設備時鐘精度的保持周期.

JLX-2

DSC6101JI2A-024.0000,DSC6100小型貼片晶振,MEMS振蕩器

原廠型號 Originalmodel：	DSC6101JI2A-024.0000	品牌brand：	Microchip
Manufacturer品牌	Microchip高穩定性晶振	OperatingTemperature溫度	-40℃ ~ 85℃
Series型號	DSC6100	Current-Supply(Max)	3mA (Typ)
Type類型	MEMS	PackageHeight高度	0.9mm
Frequency頻率	24MHz	Termination 腳位	4-pad
輸出方式 Output：	CMOS	PackageType 封裝類型	4-SMD
Voltage-Supply電壓	1.71 V ~ 3.63 V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±25ppm	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	2.50mm x 2.00mm	最小包裝數MPQ：	3000

JLX-3

DSC6101JI2A-024.0000,DSC6100小型貼片晶振,MEMS振蕩器

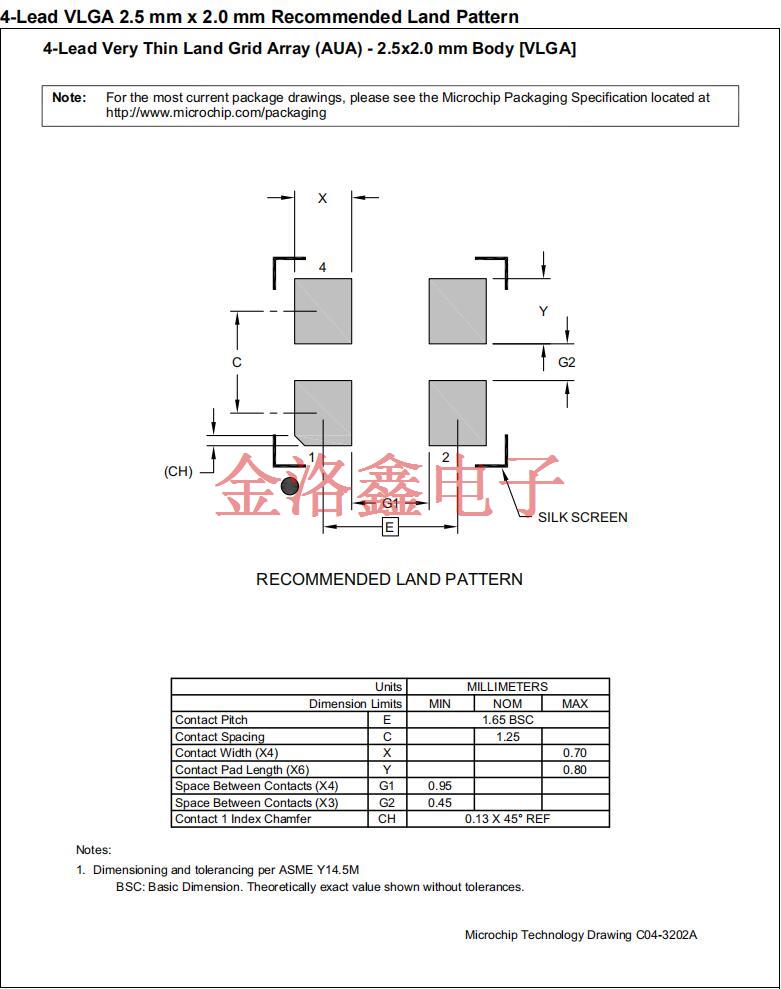

DSC6100-2520

DSC6101JI2A-024.0000,DSC6100小型貼片晶振,MEMS振蕩器

DSC1123CE1-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-150.0000	Microchip	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
DSC1103DI2-312.5000	Microchip	DSC1103	MEMS	312.5MHz	LVDS	2.25 V ~ 3.6 V
DSC1123DI2-050.0000	Microchip	DSC1123	MEMS	50MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123BL2-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI5-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1103CI5-300.0000	Microchip	DSC1103	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V
DSC1123DL5-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1123NL5-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
MX574BBD322M265	Microchip	MX57	XO (Standard)	322.265625MHz	HCSL	2.375 V ~ 3.63 V
DSC1001CI2-018.4320	Microchip	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V
DSC1123CI1-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI1-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AE2-300.0000	Microchip	DSC1123	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI1-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1122CE1-125.0000	Microchip	DSC1122	MEMS	125MHz	LVPECL	2.25 V ~ 3.6 V
DSC1123AE2-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1103CI1-075.0000	Microchip	DSC1103	MEMS	75MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-150.0000	Microchip	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI1-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC557-0344SI1	Microchip	DSC557-03	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V
DSC6003CI1A-033.0000	Microchip	DSC60XX	MEMS	33MHz	CMOS	1.71 V ~ 3.63 V
DSC6111CI1A-008.0000	Microchip	DSC6100	MEMS	8MHz	CMOS	1.71 V ~ 3.63 V
DSC6011JI1A-024.0000	Microchip	DSC60XX	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-032K800	Microchip	DSC60XX	MEMS	32.8kHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-307K000	Microchip	DSC60XX	MEMS	307kHz	CMOS	1.71 V ~ 3.63 V
DSC6001CI2A-004.0000	Microchip	DSC60XX	MEMS	4MHz	CMOS	1.71 V ~ 3.63 V
DSC6001CI2A-032.0000	Microchip	DSC60XX	MEMS	32MHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-250K000	Microchip	DSC60XX	MEMS	250kHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-002K000	Microchip	DSC60XX	MEMS	2kHz	CMOS	1.71 V ~ 3.63 V
DSC6101JI2A-024.0000	Microchip	DSC6100	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V
DSC1001CC1-047.3333	Microchip	DSC1001	MEMS	47.3333MHz	CMOS	1.8 V ~ 3.3 V
DSC1030BC1-008.0000	Microchip	DSC1030	MEMS	8MHz	CMOS	3V
DSC1001BC1-024.0000	Microchip	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V
DSC1033BC1-026.6000	Microchip	DSC1033	MEMS	26MHz	CMOS	3.3V
DSC1001DI1-001.8432	Microchip	DSC1001	MEMS	1.8432MHz	CMOS	1.8 V ~ 3.3 V
DSC1033CI1-048.0000	Microchip	DSC1033	MEMS	48MHz	CMOS	3.3V
DSC1033CI1-024.0000	Microchip	DSC1033	MEMS	24MHz	CMOS	3.3V
DSC1033DI1-012.0000	Microchip	DSC1033	MEMS	12MHz	CMOS	3.3V
DSC1033DI1-036.0000	Microchip	DSC1033	MEMS	36MHz	CMOS	3.3V
DSC1001CI1-027.0000	Microchip	DSC1001	MEMS	27MHz	CMOS	1.8 V ~ 3.3 V
DSC1033CI1-050.0000	Microchip	DSC1033	MEMS	50MHz	CMOS	3.3V
DSC6001CI1A-011.0592	Microchip	DSC60XX	MEMS	11.0592MHz	CMOS	1.71 V ~ 3.63 V
DSC1001CI2-024.0000	Microchip	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V
DSC1033BE2-024.0000	Microchip	DSC1033	MEMS	24MHz	CMOS	3.3V
DSC1001DI2-038.4000	Microchip	DSC1001	MEMS	38.4MHz	CMOS	1.8 V ~ 3.3 V
DSC1001CI5-033.3333	Microchip	DSC1001	MEMS	33.3333MHz	CMOS	1.8 V ~ 3.3 V
DSC1101DM2-012.0000	Microchip	DSC1101	MEMS	12MHz	CMOS	2.25 V ~ 3.6 V
DSC1001DE5-018.4320	Microchip	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V
DSC1101AI2-040.0000	Microchip	DSC1101	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V
DSC1101AI2-080.0000	Microchip	DSC1101	MEMS	80MHz	CMOS	2.25 V ~ 3.6 V
DSC1101AI2-064.0000	Microchip	DSC1101	MEMS	64MHz	CMOS	2.25 V ~ 3.6 V
DSC1124CI5-100.0000	Microchip	DSC1124	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V
DSC1121CM2-040.0000	Microchip	DSC1121	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V
DSC1101DL5-020.0000	Microchip	DSC1101	MEMS	20MHz	CMOS	2.25 V ~ 3.6 V
DSC1101BI5-133.0000	Microchip	DSC1101	MEMS	133MHz	CMOS	2.25 V ~ 3.6 V
DSC1101CL5-100.0000	Microchip	DSC1101	MEMS	100MHz	CMOS	2.25 V ~ 3.6 V
