Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振
頻率：122.88MHZ
尺寸：5.0mm x 3.2mm
Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振,Skyworks晶振,Si549石英晶體振蕩器,LVDS差分晶振,進口有源晶振,549BBAA000368BCGR晶振,5032mm晶振,頻率122.88MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性10ppm,6G低抖動晶振,高穩定性晶振,FPGA/ASIC時鐘晶振,存儲器晶振,搜索加速晶振,視頻播放器晶振.
訂購熱線：0755-27837162
Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振,Skyworks晶振,Si549石英晶體振蕩器,549BBAA000368BCGR晶振,5032mm晶振,LVDS差分晶振,進口有源晶振,頻率122.88MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性10ppm,6G低抖動晶振,高穩定性晶振,FPGA/ASIC時鐘晶振,存儲器晶振,搜索加速晶振,視頻播放器晶振.
Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振特點：
•I2C可編程到任何頻率從0.2到1500 MHz，分辨率< 1 ppb
•超低抖動:95 fs類型RMS (12 kHz - 20 MHz)
•配置多達4引腳可選擇的啟動頻率
•I2C接口支持100kbps、400kbps和1Mbps(快速模式+)
•出色的PSNR和電源抗噪性:-80 dBc類型
•3.3 V, 2.5 V和1.8 V VDD供電操作從相同的零件號
•LVPECL, LVDS, CML, HCSL, CMOS和Dual CMOS輸出選項
•2.5x3.2, 3.2x5, 5x7 mm包裝選項
•樣品交付周期為1-2周
Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振參數表
項目
符號
規格說明
條件
額定頻率
f_nom
122.88MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
3.3V
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~ +85℃
頻率穩定性
f_tol
±10 ppm
+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流
IDD
121mA Max
LVDS
對稱性（占空比）
SYM
45%~55%
在輸出交叉點
輸出電壓
VOC
1.275V Max
LVDS
VO
0.9Vpp Max
輸入電壓
VIH
70%VDD Min
VIL
30%VDD Max
上升下降時間
tr/tf
350ps Max
LVDS
起始時間
t str
3ms Max
相位抖動
tpj
150fs Max
100 MHz ≤ FCLK < 200 MHz

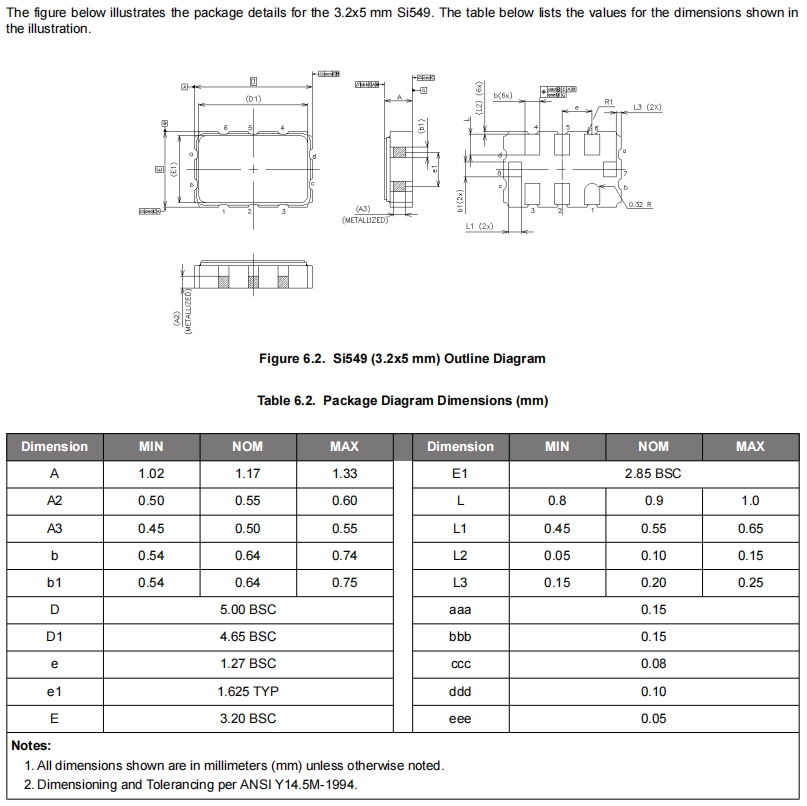

Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 | 頻率穩定性 | 工作溫度 |
| 549BAAB000212BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BACB000148ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 24.576 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549AAAC000118ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCCB002128ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CCCC000141ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 56.32 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BABA000368ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 122.88 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549AAAA000426ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 145 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAB001589ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BBAA001968ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 1.2 GHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549BAAC001741ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 70.656 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAA000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549AAAA000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAB000118ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CCAC000141ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 56.32 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CAAC000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAA001968ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 1.2 GHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BACA001937ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BACA000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCCB002127ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCBA000122ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 1 GHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CAAA000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BACB000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCAB000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCCB002129ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 199 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCCB000126ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CBAC000508ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 25 MHz | CMOS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549DACB001619ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549ACAA000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CCAC000118ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549GCDC002122ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 71.135 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549AAAA001372ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 7 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCAA000133ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 500 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCCB001125ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549ACAA000111ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 25 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549DAAB001963BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 304.125 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCCB002127ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CAAC000385BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549AAAA000426ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 145 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CAAC000385BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CBAC000508ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 25 MHz | CMOS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549DAAA000485BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 625 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCCB002128ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BAAA000798BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 1 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAC000111BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549GAAA000956BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 6.78 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAC000115BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549ABAB000115BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549BCAA000131BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 120 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CCAC002099BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 1 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549AAAA000112BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CAAC000306BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 22.5792 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BBAA000368BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 122.88 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549BAAB000544BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549ABAA000131BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 120 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549BCAC000177BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 297 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BAAB000118ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAB001623BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BACA000420BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 644.53125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BACA001937ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCAC000118BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CABC000121BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 100 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CAAA000112ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BABC002152BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 21.3333333 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CAAC000306BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 22.5792 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAC000115BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCCB002129ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 199 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CAAA000112BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549GCDC002122ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 71.135 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549DACB001619ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549AAAA000112BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549ABAA000112BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549BACB000148ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 24.576 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549GCAC000111BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 25 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CBAC000112BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549BACA000281BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 840 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAC000111BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549GAAA000956BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 6.78 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549AAAA001372ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 7 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCAA000133ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 500 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BABC002152BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 21.3333333 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CAAC001444BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 38.4 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BBAA000313BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 300 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549AAAA000118BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAB000212BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CCAC000141ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 56.32 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCAA000131BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 120 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BAAA000115BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549AAAA000118BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549ACAA000112BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BAAB001269BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCAC000177BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 297 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BAAA001968ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 1.2 GHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CAAC000148BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 24.576 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAC001741ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 70.656 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549ACAB000118BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549ACAA000112ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCAA000111BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 25 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCAA000121BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCCB001125ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BACC000520BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAC000544BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549ACAA000118BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549AADA000112BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CCAC000121BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 100 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCAC000118BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CBAC000112BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549BACA000112ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAA000121BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAC000121BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAC000121BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCAB000112ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BBAA000313BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 300 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549CAAC000112ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAC000118BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CAAC001840BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 33.33 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BBAB000112BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549CAAA000112BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549ACAA000111ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 25 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BAAC000544BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CAAC001840BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 33.33 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAA000798BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 1 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BBAA001968ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 1.2 GHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549BAAB000115BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCBA000122ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 1 GHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549DABB001895BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549AAAC000118ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549ABAA000131BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 120 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549CCAC000121BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 100 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549ACAA000118BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549DCAC000121BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 100 MHz | CML | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BACA000420BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 644.53125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CAAC000148BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 24.576 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549ACAA000112BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CABC000121BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 100 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAC000118BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549DAAB001963BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 304.125 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BACB001812BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 148.5 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BBAB000115BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549BAAA000121BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549DABB001895BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAB001589ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549DCAC000121BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 100 MHz | CML | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BACA000281BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 840 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BACB001812BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 148.5 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CCAC000885BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 32.768 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BBAA000368BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 122.88 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549ACAC002076BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 455 kHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549ACAC002076BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 455 kHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BAAA000112ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CCAC000885BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 32.768 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549GCAC000111BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 25 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BAAB000115BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAC000112BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CAAC001444BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 38.4 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCAA000111BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 25 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCCB000798BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 1 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CAAC000112BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549GCCC000798BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 1 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCCB000798BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 1 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BBAB000115BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549AAAA000112ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549AADA000112BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BABA000368ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 122.88 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAB001623BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BACC000520BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CCAC000118ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CAAC000112BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCAA000313BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 300 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCAA000313BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 300 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549GCCC000798BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 1 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CCAC002099BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 1 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549ACAB000118BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549ABAC001975BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 40.8 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549BCCA000798BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 1 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCCA000798BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 1 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BBAB000112BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549CCCC000141ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 56.32 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BAAB000544BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAB001269BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549ABAA000112BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549ABAC001975BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 40.8 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549BAAA000115BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCAA000121BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BACA001924BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 285 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAC000112BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BACA001924BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 285 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCCB000126ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549DAAA000485BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 625 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549ABAB000115BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549BACB000112ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
公司名：深圳市金洛鑫電子有限公司
聯系人：茹紅青
手機：13510569637
電話：0755-27837162
QQ號：657116624
微信公眾號：CITIZENCRYSTAL
搜狐公眾號：晶振石英晶振NDK晶振
郵箱：jinluodz@163.com
地址：深圳市寶安區41區甲岸路19號
網址：http://www.jftz888.com/
相關的產品 / Related Products
- O-14.74560-JO53-B-3.3-2-T1-LF,jauch有源晶振,低相位抖動晶振
O-14.74560-JO53-B-3.3-2-T1-LF,jauch有源晶振,低相位抖動晶振,14.74560MHz頻率為通信協議解析,時序控制等場景提供精準時鐘基準,3.3V低功耗供電設計契合便攜電子設備的續航需求.產品采用小型化封裝,節省PCB板空間,同時具備寬工作溫度范圍和優異的防潮,防腐蝕性能,適配室內外多種工作環境,廣泛應用于智能家居,可穿戴設備,工業傳感器等終端產品.
- SXO75L3A481-100.000MT,Suntsu差分晶振,7050穿戴設備晶振
SXO75L3A481-100.000MT,Suntsu差分晶振,7050穿戴設備晶振,憑借100.000MT精準頻率,為設備定位,心率監測等核心功能提供穩定頻率支撐.差分結構大幅降低智能穿戴設備晶振內部電磁干擾影響,搭配低功耗芯片設計,完美契合穿戴設備"長續航,小體積"核心訴求.產品經過嚴格可靠性測試,適應穿戴設備日常運動,高低溫等復雜使用場景,是高端穿戴設備的優選頻率組件.
- 32.768K振蕩器,進口CMOS晶振,SM22K有源晶振,Pletronics晶振,SM2220KC-32.768K晶體
- 32.768K振蕩器,進口CMOS晶振,SM22K有源晶振,Pletronics晶振,SM2220KC-32.768K晶體 SM2220KC - 32.768K晶體作為Pletronics出品的進口CMOS晶振，以32.768KHz的精準頻率，為各類電子設備提供穩定的時鐘信號。這款晶振采用高品質材料與先進制造工藝，確保在 - 40℃至 + 85℃的寬溫度范圍內，頻率穩定性極佳，頻率偏差能被嚴格控制在極小范圍。其有源振蕩器設計，內部集成振蕩電路，無需復雜外部電路即可快速穩定地輸出時鐘信號。CMOS輸出特性使其能與數字電路良好適配，廣泛應用于對時鐘精度要求高的實時時鐘模塊，為設備提供精確計時，是智能手表、電子日歷等產品穩定運行的可靠保障。
JLX-PD
金洛鑫產品系列
PRODUCT LINE
石英晶振
QuartzCrystal
- KDS晶振
- 愛普生晶振
- NDK晶振
- 京瓷晶振
- 精工晶振
- 西鐵城晶振
- 大河晶振
- 村田晶振
- 泰藝晶振
- TXC晶振
- 鴻星晶振
- 希華晶振
- 加高晶振
- 百利通亞陶晶振
- 嘉碩晶振
- 津綻晶振
- 瑪居禮晶振
- 富士晶振
- SMI晶振
- Lihom晶振
- SHINSUNG晶振
- NAKA晶振
- AKER晶振
- NKG晶振
- NJR晶振
- Sunny晶振
貼片晶振
SMDcrystal
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康納溫菲爾德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal晶振
- 維管晶振
- ECScrystal晶振
- 日蝕晶振
- 拉隆晶振
- 格林雷晶振
- SiTimeCrystal晶振
- IDTcrystal晶振
- PletronicsCrystal晶振
- StatekCrystal晶振
- AEK晶振
- AEL晶振
- Cardinal晶振
- Crystek晶振
- Euroquartz晶振
- Fox晶振
- Frequency晶振
- GEYER晶振
- KVG晶振
- ILSI晶振
- Mmdcomp晶振
- MtronPTI晶振
- QANTEK晶振
- QuartzCom晶振
- Quarztechnik晶振
- Suntsu晶振
- Transko晶振
- Wi2Wi晶振
- ITTI晶振
- Oscilent晶振
- ACT晶振
- Rubyquartz晶振
- MTI-milliren晶振
- PDI晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Anderson晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- FILTRONETICS晶振
- STD晶振
- Q-Tech晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- ARGO晶振
- 瑞薩renesas晶振
- Skyworks晶振
- Dynamic迪拉尼
諧振器濾波器
Resonator
溫補晶振
TCXOcrystal
32.768K
32768Kcrystal
霧化片
AtomizationPiece
智能穿戴
車載安防
通訊網絡
智能玩具
金洛鑫聯系方式
