當前位置：首頁 » 石英晶振 » X32-27.000-12-10/20I,臺灣進口晶振,無線通信應用晶振

prevnext

X32-27.000-12-10/20I,臺灣進口晶振,無線通信應用晶振

頻率：27MHz

尺寸：3.20mm x 2.50mm

X32-27.000-12-10/20I,臺灣進口晶振,無線通信應用晶振,針對無線通信設備對信號穩定性的高要求,該晶振具備低相位噪聲與寬溫穩定工作特性.在-40℃~85℃的工業級溫度范圍內,頻率偏差可控制在±10ppm以內,有效避免因環境溫度波動導致的通信信號卡頓,斷連問題,同時低相位噪聲設計能減少信號干擾,提升無線通信的抗干擾能力,特別適配智能家居網關,無線傳感器,工業無線監控設備等高頻次數據傳輸場景.

訂購熱線：0755-27837162

X32-27.000-12-10/20I,臺灣進口晶振,無線通信應用晶振

X32-27.000-12-10/20I是一款源自臺灣的高規格3225石英晶振封裝無源貼片晶振,封裝尺寸嚴格遵循3.2mm(長)×2.5mm(寬)×0.8mm(厚)的行業通用標準,厚度僅為傳統插件晶振的1/3,能輕松適配無線通信設備中高密度PCB板的布局需求,尤其適合藍牙模塊,Wi-Fi模組等小型化通信組件.作為臺灣進口產品,其生產過程遵循ISO9001與TS16949質量管理體系,從晶體原材料篩選到成品檢測均經過多輪嚴苛把控,原材料選用純度99.999%的高等級石英晶體,封裝外殼采用耐高溫陶瓷與抗氧化金屬蓋板,焊端則采用鎳金復合鍍層工藝,確保每一顆晶振都具備一致的性能與穩定的品質,有效避免了國產同類產品中常見的參數離散性大,可靠性參差不齊等問題,為無線通信設備的穩定運行奠定基礎.

JLX-2

X32-27.000-12-10/20I,臺灣進口晶振,無線通信應用晶振

原廠型號 Original model ：	X32-27.000-12-10/20I
品牌 brand ：	瑪居禮晶振
型號名稱 Model name：	X32
Type 系列：	MHz Crystal
頻率 frequency ：	27MHz
Frequency Stability頻率穩定度	-
frequency tolerance頻率容差	10ppm
Load capacitance 負載電容	12 pF
Size / Dimension 尺寸	3225mm
Package Height 厚度	-
ESR (Equivalent Series Resistance)ESR（等效串聯電阻）	-
Operating Temperature 工作溫度	-40℃ to +85℃
Termination 腳位	4-Pad
Package Type 封裝類型	4- SMD
Packaging 包裝	Tape and Reel
Mounting Style 安裝方式	Surface Mount

JLX-3

X32-27.000-12-10/20I,臺灣進口晶振,無線通信應用晶振

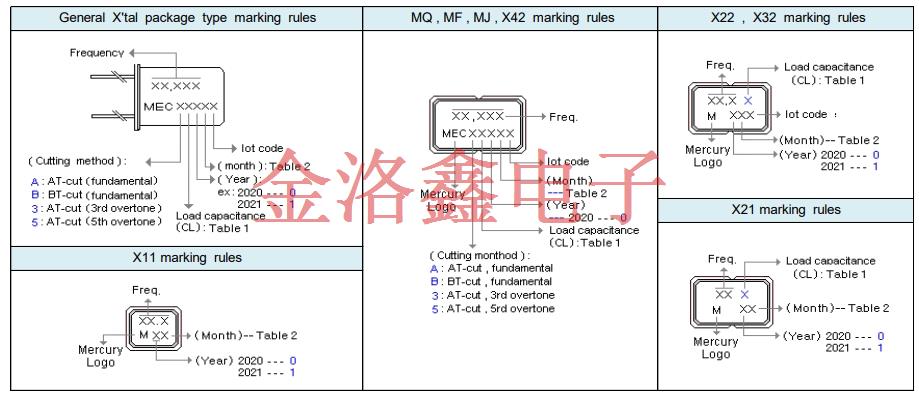

X32 X22 X21 MQ MF MJ X42 X11

X32-27.000-12-10/20I,臺灣進口晶振,無線通信應用晶振

12.87000	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87001	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	9 pF	± 20 ppm
12.87002	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	7 pF	± 20 ppm
12.87034	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	4 pF	± 20 ppm
12.87080	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87081	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF	± 20 ppm
12.87083	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF	± 20 ppm
12.87086	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF	± 10 ppm
12.87090	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 10 ppm
12.87095	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 10 ppm
12.87105	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF	± 10 ppm
12.87107	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87109	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12 pF	± 15 ppm
12.87110	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87111	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87112	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87113	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87114	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87115	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87116	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87118	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF	± 20 ppm
12.87119	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF	± 20 ppm
12.87120	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87121	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87123	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF	± 30 ppm
12.87126	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87127	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF	± 30 ppm
12.87128	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF	± 20 ppm
12.87129	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87130	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87131	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87132	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 20 ppm
12.87133	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87134	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 10 ppm
12.87135	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 20 ppm
12.87136	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87137	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	9 pF	± 20 ppm
12.87138	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87139	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 10 ppm
12.87143	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 20 ppm
12.87144	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 5.0 ppm
12.87145	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87146	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 10 ppm
12.87147	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 10 ppm
12.87148	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 20 ppm
12.87149	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 20 ppm
12.87150	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87151	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 30 ppm
12.87152	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87153	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 20 ppm
12.87155	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87157	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87158	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87159	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87160	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87161	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87163	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	7 pF	± 20 ppm
12.87164	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	9 pF	± 30 ppm
12.87165	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	9 pF	± 20 ppm
12.87166	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF	± 20 ppm
