511BCA148M500CAG,Silicon品牌,6G路由器晶振
頻率：148.5MHZ
尺寸：3.2×2.5mm
511BCA148M500CAG,Silicon品牌,6G路由器晶振,歐美進口晶振,Silicon晶振,Si511貼片振蕩器,511BCA148M500CAG晶振,有源晶振,差分晶振,3225貼片晶振,LVDS晶振,石英晶振,頻率148.5MHz,電壓3.3V,頻率偏差20ppm,工作溫度-40~85°C,耐高溫晶振,高可靠性晶振,小體積晶振,6G路由器晶振,網絡系統晶振,移動應用晶振,SONET/SDH/OTN晶振.
訂購熱線：0755-27837162
511BCA148M500CAG,Silicon品牌,6G路由器晶振,歐美進口晶振,Silicon晶振,Si511貼片振蕩器,511BCA148M500CAG晶振,有源晶振,差分晶振,3225mm貼片晶振,LVDS晶振,石英晶振,頻率148.5MHz,電壓3.3V,頻率偏差20ppm,工作溫度-40~85°C,耐高溫晶振,高可靠性晶振,小體積晶振,6G路由器晶振,網絡系統晶振,移動應用晶振,SONET/SDH/OTN晶振.
511BCA148M500CAG,Silicon品牌,6G路由器晶振特點：
-支持100KHz ~ 250MHz的任意頻率
-低抖動操作
-2 - 4周的交貨期
-總穩定性包括10年老化
-全面的生產測試覆蓋范圍包括晶體ESR和DLD
-片上LDO穩壓器，用于電源噪聲濾波
-3.3、2.5或1.8 V操作
-差分(LVPECL, LVDS, HCSL)或CMOS輸出選項
-可選集成1:2 CMOS扇出緩沖器
-在OE和電源上進行微弱抑制
-行業標準5 × 7、3.2 × 5和2.5 × 3.2 mm封裝
-無鉛，符合RoHS標準
-工作溫度-40至85℃操作
511BCA148M500CAG,Silicon品牌,6G路由器晶振規格表
項目
符號
規格說明
條件
額定頻率
f_nom
148.5MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
3.3V
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~ +85℃
頻率穩定性
f_tol
±30ppm
+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流
IDD
23mA Max
LVDS
對稱性（占空比）
SYM
45%~55%
在輸出交叉點
輸出電壓
VOC
1.33V Max
LVDS
VO
0.45VPPSE Max
輸入電壓
VIH
0.8×VDD Min
VIL
0.2×VDD Max
上升下降時間
tr/tf
800ps Max
LVDS
起始時間
t str
10ms Max
相位抖動
tpj
1.0ps Max
12 kHz to 20 MHz integration band-width2 (brickwall)

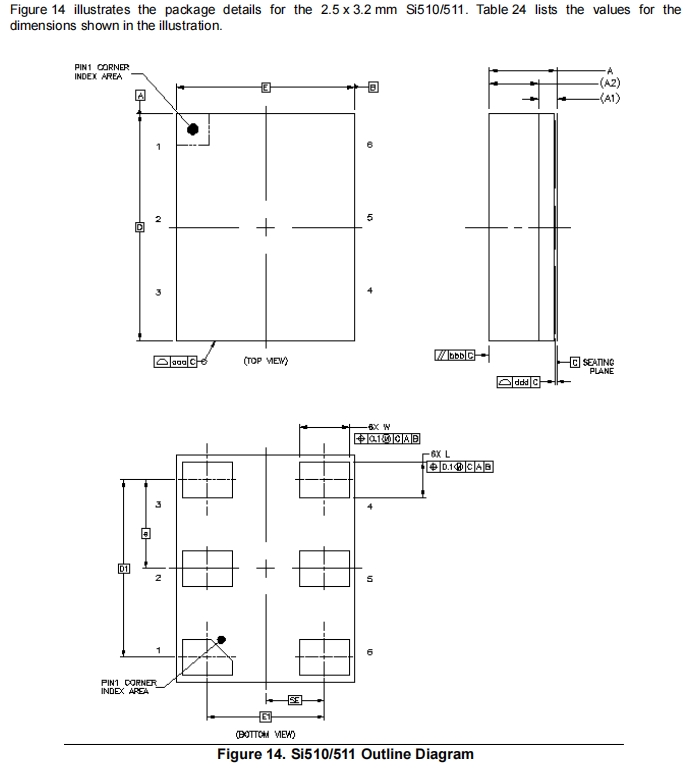

511BCA148M500CAG,Silicon品牌,6G路由器晶振尺寸圖
| 原廠代碼 | 品牌 | 型號 | 頻率 | 電壓 | 頻率穩定度 | 尺寸 |
| 510BBA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA125M000BAG | Silicon Labs | Si511 | 125MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA100M000AAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA148M500BAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA156M250AAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA200M000BAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA100M000BAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA125M000BAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA125M000BAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA100M000AAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000110BAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA148M500AAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA200M000BAG | Silicon Labs | Si511 | 200MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA200M000BAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA200M000AAG | Silicon Labs | Si511 | 200MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA25M0000BAG | Silicon Labs | Si511 | 25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FCA100M000BAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±20ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BCA100M000BAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±20ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA125M000BAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA74M2500BAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250BAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA200M000BAG | Silicon Labs | Si510 | 200MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA200M000BAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA100M000BAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA106M250BAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA125M000BAG | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA000149BAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA100M000BAG | Silicon Labs | Si510 | 100MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA106M250BAG | Silicon Labs | Si511 | 106.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA106M250BAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA125M000AAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA125M000AAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA100M000AAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA106M250AAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA148M500BAG | Silicon Labs | Si511 | 148.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA156M250AAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510DBA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000149BAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA000149BAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA000149BAG | Silicon Labs | Si511 | 74.175824MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA106M250BAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA106M250BAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA74M2500BAG | Silicon Labs | Si511 | 74.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA000149BAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000149BAG | Silicon Labs | Si510 | 74.175824MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA74M2500BAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000149AAG | Silicon Labs | Si510 | 74.175824MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA125M000AAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA106M250AAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA106M250AAG | Silicon Labs | Si511 | 106.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA74M2500AAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA000149AAG | Silicon Labs | Si511 | 74.175824MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA000149AAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000149AAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA74M2500AAG | Silicon Labs | Si510 | 74.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA74M2500AAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA106M250AAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA000149AAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA74M2500AAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA74M2500AAG | Silicon Labs | Si511 | 74.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA106M250AAG | Silicon Labs | Si510 | 106.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000149AAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA155M520BAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA155M520BAG | Silicon Labs | Si510 | 155.52MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA155M520BAG | Silicon Labs | Si511 | 155.52MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA000110BAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA000110BAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA148M500BAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA155M520BAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA000110BAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000110BAG | Silicon Labs | Si510 | 148.35165MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA155M520BAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA155M520AAG | Silicon Labs | Si510 | 155.52MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000110AAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA000110AAG | Silicon Labs | Si510 | 148.35165MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA155M520AAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA148M500AAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA148M500AAG | Silicon Labs | Si511 | 148.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA156M250AAG | Silicon Labs | Si511 | 156.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA212M500BAG | Silicon Labs | Si510 | 212.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA212M500BAG | Silicon Labs | Si511 | 212.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA212M500BAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA200M000BAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA212M500AAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA212M500AAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA212M500AAG | Silicon Labs | Si510 | 212.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA200M000AAG | Silicon Labs | Si510 | 200MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA212M500AAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510EBA125M000AAG | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ACA47M2500AAG | Silicon Labs | Si510 | 47.25MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511SAA100M000AAG | Silicon Labs | Si511 | 100MHz | 1.8V | ±50ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BCA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±20ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA125M000AAG | Silicon Labs | Si511 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA74M2500BAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA125M000BAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA100M000BAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA100M000BAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA125M000AAG | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA200M000AAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA74M2500BAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA74M2500BAG | Silicon Labs | Si510 | 74.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA100M000BAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA100M000AAG | Silicon Labs | Si510 | 100MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA74M2500AAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA106M250AAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA155M520BAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA156M250BAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA156M250BAG | Silicon Labs | Si510 | 156.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA000110BAG | Silicon Labs | Si511 | 148.35165MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA155M520AAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA000110AAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA000110AAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000110AAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA000110AAG | Silicon Labs | Si511 | 148.35165MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA212M500BAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA212M500BAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA212M500BAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA212M500AAG | Silicon Labs | Si511 | 212.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA200M000AAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA212M500AAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA200M000AAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA200M000AAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510CBA25M0000BAG | Silicon Labs | Si510 | 25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511SBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 1.8V | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA100M000BAGR | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA125M000BAGR | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA100M000BAGR | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA125M000BAGR | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA100M000BAGR | Silicon Labs | Si510 | 100MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA125M000BAGR | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA100M000BAGR | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA125M000BAGR | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA100M000BAGR | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA125M000BAGR | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA100M000BAGR | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA125M000BAGR | Silicon Labs | Si511 | 125MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA106M250BAGR | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA106M250BAGR | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA106M250BAGR | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA106M250BAGR | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA106M250BAGR | Silicon Labs | Si511 | 106.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA000149BAGR | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA74M2500BAGR | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA000149BAGR | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA74M2500BAGR | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000149BAGR | Silicon Labs | Si510 | 74.175824MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA74M2500BAGR | Silicon Labs | Si510 | 74.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA000149BAGR | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA74M2500BAGR | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA000149BAGR | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA74M2500BAGR | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA000149BAGR | Silicon Labs | Si511 | 74.175824MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA74M2500BAGR | Silicon Labs | Si511 | 74.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA100M000AAGR | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA125M000AAGR | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA100M000AAGR | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA125M000AAGR | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA100M000AAGR | Silicon Labs | Si510 | 100MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA125M000AAGR | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA100M000AAGR | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA125M000AAGR | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA100M000AAGR | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA125M000AAGR | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA100M000AAGR | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA125M000AAGR | Silicon Labs | Si511 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA106M250AAGR | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA106M250AAGR | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA106M250AAGR | Silicon Labs | Si510 | 106.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA106M250AAGR | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA106M250AAGR | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA106M250AAGR | Silicon Labs | Si511 | 106.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000149AAGR | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA74M2500AAGR | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA000149AAGR | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA74M2500AAGR | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA000149AAGR | Silicon Labs | Si510 | 74.175824MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA74M2500AAGR | Silicon Labs | Si510 | 74.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA000149AAGR | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA74M2500AAGR | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000149AAGR | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA74M2500AAGR | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA000149AAGR | Silicon Labs | Si511 | 74.175824MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA74M2500AAGR | Silicon Labs | Si511 | 74.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA156M250BAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA156M250BAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA156M250BAGR | Silicon Labs | Si511 | 156.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA155M520BAGR | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA155M520BAGR | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA155M520BAGR | Silicon Labs | Si510 | 155.52MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA155M520BAGR | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA155M520BAGR | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA148M500BAGR | Silicon Labs | Si511 | 148.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA155M520BAGR | Silicon Labs | Si511 | 155.52MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA000110BAGR | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA148M500BAGR | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA000110BAGR | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA148M500BAGR | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000110BAGR | Silicon Labs | Si510 | 148.35165MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA148M500BAGR | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA000110BAGR | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA148M500BAGR | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA000110BAGR | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA148M500BAGR | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA000110BAGR | Silicon Labs | Si511 | 148.35165MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA156M250AAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA156M250AAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA156M250AAGR | Silicon Labs | Si510 | 156.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA155M520AAGR | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA155M520AAGR | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA155M520AAGR | Silicon Labs | Si510 | 155.52MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA155M520AAGR | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA155M520AAGR | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA155M520AAGR | Silicon Labs | Si511 | 155.52MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000110AAGR | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA148M500AAGR | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA000110AAGR | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA148M500AAGR | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA000110AAGR | Silicon Labs | Si510 | 148.35165MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA148M500AAGR | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA000110AAGR | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA148M500AAGR | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000110AAGR | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA148M500AAGR | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA000110AAGR | Silicon Labs | Si511 | 148.35165MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA148M500AAGR | Silicon Labs | Si511 | 148.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA25M0000BAGR | Silicon Labs | Si511 | 25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA125M000AAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA200M000BAGR | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA200M000BAGR | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA200M000BAGR | Silicon Labs | Si510 | 200MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA200M000BAGR | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA200M000BAGR | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA200M000BAGR | Silicon Labs | Si511 | 200MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA212M500BAGR | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA212M500BAGR | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA212M500BAGR | Silicon Labs | Si510 | 212.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA212M500BAGR | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA212M500BAGR | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA212M500BAGR | Silicon Labs | Si511 | 212.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA200M000AAGR | Silicon Labs | Si510 | 200MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA200M000AAGR | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA200M000AAGR | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA200M000AAGR | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA200M000AAGR | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA200M000AAGR | Silicon Labs | Si511 | 200MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA212M500AAGR | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA212M500AAGR | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA212M500AAGR | Silicon Labs | Si510 | 212.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA212M500AAGR | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA212M500AAGR | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA212M500AAGR | Silicon Labs | Si511 | 212.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511SAA20M0000AAG | Silicon Labs | Si511 | 20MHz | 1.8V | ±50ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA150M000BAG | Silicon Labs | Si510 | 150MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BCB125M000AAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA154M875AAG | Silicon Labs | Si510 | 154.875MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA157M625AAG | Silicon Labs | Si510 | 157.625MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA25M0000AAG | Silicon Labs | Si511 | 25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511JBA125M000AAG | Silicon Labs | Si511 | 125MHz | 1.8V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510KCA100M000BAG | Silicon Labs | Si510 | 100MHz | 1.8V | ±20ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
公司名：深圳市金洛鑫電子有限公司
聯系人：茹紅青
手機：13510569637
電話：0755-27837162
QQ號：657116624
微信公眾號：CITIZENCRYSTAL
搜狐公眾號：晶振石英晶振NDK晶振
郵箱：jinluodz@163.com
地址：深圳市寶安區41區甲岸路19號
網址：http://www.jftz888.com/
相關的產品 / Related Products
- NX3225SA-20.000M-STD-CRS-2,3225車規晶振,NDK諧振器
- NX3225SA-20.000M-STD-CRS-2,3225車規晶振,NDK諧振器,3225標準貼片尺寸,20MHz固定頻率,負載電容8pF,專為汽車電子系統設計.它遵循車規級質量管控體系,具備優秀的抗應力與抗振動能力,可在極端溫度與復雜電磁環境下持續穩定工作,廣泛應用于新能源汽車BMS,車載MCU,車載以太網等關鍵控制與通信模塊.
- Q40.0-JXS22-10-10/10-FU-WA-LF,JAUCH無源晶振,2520石英晶振
- Q40.0-JXS22-10-10/10-FU-WA-LF,JAUCH無源晶振,2520石英晶振,專為緊湊型電子設備提供穩定的時鐘諧振信號.該器件依托優質石英晶圓與成熟封裝工藝,具備優異的頻率精度,低等效串聯電阻(ESR)與穩定的溫度特性,可廣泛應用于消費電子,物聯網模塊,無線通信等對時鐘基礎精度要求較高的場景.
- TG2016SMN25MHz-ACGNNM,EPSON溫補晶振,表面貼裝晶振
- TG2016SMN25MHz-ACGNNM,EPSON溫補晶振,微型表面貼裝晶振,采用2.0×1.6mm超薄表面貼裝結構,輸出25MHz穩定時鐘.內置高精度溫度補償回路,實現寬溫域低漂移運行,同時具備低功耗特性,延長電池供電設備續航.兼容主流射頻與基帶芯片,簡化硬件設計,提升設備在復雜環境下的工作可靠性.
JLX-PD
金洛鑫產品系列
PRODUCT LINE
石英晶振
QuartzCrystal
- KDS晶振
- 愛普生晶振
- NDK晶振
- 京瓷晶振
- 精工晶振
- 西鐵城晶振
- 大河晶振
- 村田晶振
- 泰藝晶振
- TXC晶振
- 鴻星晶振
- 希華晶振
- 加高晶振
- 百利通亞陶晶振
- 嘉碩晶振
- 津綻晶振
- 瑪居禮晶振
- 富士晶振
- SMI晶振
- Lihom晶振
- SHINSUNG晶振
- NAKA晶振
- AKER晶振
- NKG晶振
- NJR晶振
- Sunny晶振
貼片晶振
SMDcrystal
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康納溫菲爾德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal晶振
- 維管晶振
- ECScrystal晶振
- 日蝕晶振
- 拉隆晶振
- 格林雷晶振
- SiTimeCrystal晶振
- IDTcrystal晶振
- PletronicsCrystal晶振
- StatekCrystal晶振
- AEK晶振
- AEL晶振
- Cardinal晶振
- Crystek晶振
- Euroquartz晶振
- Fox晶振
- Frequency晶振
- GEYER晶振
- KVG晶振
- ILSI晶振
- Mmdcomp晶振
- MtronPTI晶振
- QANTEK晶振
- QuartzCom晶振
- Quarztechnik晶振
- Suntsu晶振
- Transko晶振
- Wi2Wi晶振
- ITTI晶振
- Oscilent晶振
- ACT晶振
- Rubyquartz晶振
- MTI-milliren晶振
- PDI晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Anderson晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- FILTRONETICS晶振
- STD晶振
- Q-Tech晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- ARGO晶振
- 瑞薩renesas晶振
- Skyworks晶振
- Dynamic迪拉尼
諧振器濾波器
Resonator
溫補晶振
TCXOcrystal
32.768K
32768Kcrystal
霧化片
AtomizationPiece
智能穿戴
車載安防
通訊網絡
智能玩具
金洛鑫聯系方式
