歐美Silicon品牌,501BCAM032768DAG,6G低抖動晶振
頻率：32.768KHz
尺寸：2.5mm x 2.0mm
歐美Silicon品牌,501BCAM032768DAG,6G低抖動晶振,歐美Silicon晶振,Si501有源晶振,501BCAM032768DAG晶振,32.768K晶振,2520晶振,貼片石英晶振,四腳貼片晶振,頻率32.768KHz,電壓3.3V,頻率穩定性20ppm,工作溫度-40~85°C,低抖動晶振,超小封裝晶振,高穩定性晶振,家庭自動化晶振,顯示和控制面板晶振,IP攝像機晶振,戶外電子產品晶振.
訂購熱線：0755-27837162
歐美Silicon品牌,501BCAM032768DAG,6G低抖動晶振,歐美Silicon晶振,Si501有源晶振,501BCAM032768DAG晶振,32.768K晶振,2520晶振,貼片石英晶振,四腳貼片晶振,頻率32.768KHz,電壓3.3V,頻率穩定性20ppm,工作溫度-40~85°C,低抖動晶振,超小封裝晶振,高穩定性晶振,家庭自動化晶振,顯示和控制面板晶振,IP攝像機晶振,戶外電子產品晶振.
歐美Silicon品牌,501BCAM032768DAG,6G低抖動晶振特點：
-寬頻率范圍:32KHz至100MHz
-有關100 MHz以上的頻率，請聯系Silicon Labs
-Si501單頻w/ OE
-Si502雙頻w/ OE/FS
-Si503四頻w/ FS
-±20/30/ 50ppm頻率穩定性，包括10年老化
-LVCMOS輸出
-低周期抖動
-低功耗
-連續供電電壓范圍:+1.71 V ~ +3.63 V
-用戶可選擇的升降選項
-無故障啟動和停止
-短期穩定性好，長期老化性好
-行業標準腳印:2x2.5, 2.5x3.2, 3.2x5 mm
-符合RoHS標準，無鉛
-縮短交貨期:<2周
-20至+70°C:擴展商用
-40至+85°C:工業
-Si50x系列還包括Si504，用于電路可編程性(參見Si504數據表)
歐美Silicon品牌,501BCAM032768DAG,6G低抖動晶振規格表
| Parameters | Condition | Si501 |
| Frequency Range | 32.768KHZ | |
| Frequency Stability | ±20ppm | |
| Operating Temperature | Extended Commercial grade | -20°C~+70°C |
| Extended commercial | -40°C~+85°C | |
| Storage Temperature | -55°C~+125°C | |
| Supply Voltage | 3.3V | |
| Supply Current |
CL=4 pF, 3.3 VDD, FCLK=1.0 MHz, low power option |
2.5 mA Max |
|
CL=4 pF, 3.3 VDD, FCLK=100 MHz, low power option |
6.5 mA Max |
|
|
CL=4 pF, 3.3 VDD, FCLK=1.0 MHz, low jitter option |
4.9 mA Max |
|
|
CL=4 pF, 3.3 VDD, FCLK=100 MHz, low jitter option |
8.9 mA Max |
|
| OE Internal Pull Resistor | Ordering option |
60 kΩ Max
|
| Rise and Fall Times 1 | 1st ordering option code2: A and H Z0=25 Ω@ 3.3 V | 1.2ns Max |
|
Startup Time2 |
From VDD crossing 1.71 V to first clock output |
4ms Max |
|
Output High Voltage
|
1st ordering option code: A and H IOH=–4 mA | 0.90 x VDD Min |
|
Output Low Voltage |
1st ordering option code: A and H IOH=+4 mA | 0.10 x VDD Max |
| Duty Cycle | Drive strength selected such that tRise/tFall (20% to 80%)<10% of period | 45% Min ~55% Max |
| Period Jitter | 100 MHz, Low Jitter Option 1st ordering option code: H | 1.6 ps RMS Max |
| 100 MHz, Low Power Option 1st ordering option code: A | 1.9 ps RMS Max | |
| Phase Jitter |
75 MHz FOFFSET=900 kHz to 7.5 MHz Low Jitter Option 1st ordering option code: H
|
1.3 ps RMS Max |
|
75 MHz FOFFSET=900 kHz to 7.5 MHz Low Power Option 1st ordering option code: A
|
3.2 ps RMS Max |

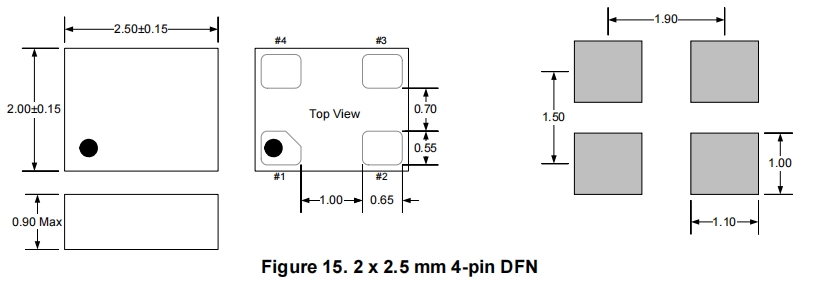

歐美Silicon品牌,501BCAM032768DAG,6G低抖動晶振尺寸圖
| 原廠代碼 | 品牌 | 型號 | 頻率 | 電壓 | 頻率穩定度 | 尺寸 |
| 501AAA27M0000DAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA27M0000DAG | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA100M000CAG | Silicon Labs | Si501 | 100MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA100M000BAG | Silicon Labs | Si501 | 100MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCAM032768BAF | Silicon Labs | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCAM032768DAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCAM032768DAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JAA24M0000DAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501BAA16M0000DAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JAA24M0000CAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA27M0000CAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA25M0000BAF | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JAA40M0000CAF | Silicon Labs | Si501 | 40MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA24M0000BAF | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501EAA48M0000CAF | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA27M0000BAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501EAA48M0000BAF | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JAA25M0000BAF | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BAA50M0000BAF | Silicon Labs | Si501 | 50MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501AAA50M0000CAF | Silicon Labs | Si501 | 50MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501EAA48M0000DAG | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA25M0000DAG | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501HCA27M0000DAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ABA8M00000BAF | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCA12M0000DAF | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA24M0000DAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA24M0000BAG | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCA16M0000BAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA24M0000CAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCA26M0000BAF | Silicon Labs | Si501 | 26MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JAA25M0000BAG | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCA16M0000CAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501EAA48M0000CAG | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501BAA16M0000BAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BAA16M0000CAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JAA24M0000BAG | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501AAA27M0000BAG | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ACA10M0000CAF | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JAA40M0000BAG | Silicon Labs | Si501 | 40MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ACA10M0000BAF | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA10M0000BAF | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCA12M0000BAF | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA25M0000CAF | Silicon Labs | Si501 | 25MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCA27M0000BAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501AAA50M0000BAG | Silicon Labs | Si501 | 50MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ABA8M00000BAG | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCA27M0000DAG | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ABA8M00000CAG | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA10M0000BAG | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ACA10M0000BAG | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA20M0000CAG | Silicon Labs | Si501 | 20MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501BCA16M0000BAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCA16M0000CAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA100M000DAF | Silicon Labs | Si501 | 100MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA100M000CAF | Silicon Labs | Si501 | 100MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA100M000BAF | Silicon Labs | Si501 | 100MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCAM032768DAF | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501HCAM032768DAF | Silicon Labs | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCAM032768CAF | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501BCAM032768BAF | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCAM032768CAF | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501BCAM032768CAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 500DLAA125M000ACF | Silicon Labs | Si500D | 125MHz | 2.5V | ±150ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 500DLAA200M000ACF | Silicon Labs | Si500D | 200MHz | 2.5V | ±150ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 501BCAM032768BAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCAM032768DAF | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCAM032768BAF | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCAM032768BAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCAM032768CAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCAM032768BAG | Silicon Labs | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCAM032768CAF | Silicon Labs | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCAM032768CAG | Silicon Labs | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCAM032768DAG | Silicon Labs | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ABA8M00000CAF | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501ABA8M00000DAF | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ABA8M00000DAG | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ACA10M0000CAG | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501ACA10M0000DAF | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ACA10M0000DAG | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA10M0000CAF | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA10M0000CAG | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA10M0000DAF | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA10M0000DAG | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501HCA12M0000BAG | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCA12M0000CAF | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCA12M0000CAG | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCA12M0000DAG | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501BCA16M0000DAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501BCA16M0000DAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501BAA16M0000BAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BAA16M0000CAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501BAA16M0000DAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA20M0000BAF | Silicon Labs | Si501 | 20MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA20M0000BAG | Silicon Labs | Si501 | 20MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA20M0000CAF | Silicon Labs | Si501 | 20MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA20M0000DAF | Silicon Labs | Si501 | 20MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA20M0000DAG | Silicon Labs | Si501 | 20MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA24M0000CAF | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA24M0000CAG | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA24M0000DAF | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA24M0000DAG | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JAA24M0000BAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JAA24M0000CAG | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JAA24M0000DAG | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA24M0000BAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA24M0000BAG | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA24M0000CAG | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA24M0000DAG | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA25M0000BAG | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501AAA25M0000CAF | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA25M0000CAG | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA25M0000DAF | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JAA25M0000CAF | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JAA25M0000CAG | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JAA25M0000DAF | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JAA25M0000DAG | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
公司名：深圳市金洛鑫電子有限公司
聯系人：茹紅青
手機：13510569637
電話：0755-27837162
QQ號：657116624
微信公眾號：CITIZENCRYSTAL
搜狐公眾號：晶振石英晶振NDK晶振
郵箱：jinluodz@163.com
地址：深圳市寶安區41區甲岸路19號
網址：http://www.jftz888.com/
相關的產品 / Related Products
- X2C048000L71H-CEHZ,HSX211S臺產加高晶振,小型化晶振
X2C048000L71H-CEHZ無線局域網應用晶振,HSX211S臺產加高晶振,小型化晶振,產品采用4焊盤貼片設計,封裝尺寸僅2.0×1.6×0.45mm,安裝便捷且空間利用率高,可靈活適配M.2硬盤,智能穿戴設備等高密度電路設計.其具備寬頻率適配能力與精準的頻率調節特性,能滿足不同電路的負載電容需求,搭配工業級寬溫工作范圍,在戶外監控,車載電子等嚴苛環境下仍可穩定運行.
- Q22FA23V00482,FA-238V無源晶振,3225愛普生電子晶振
Q22FA23V00482,FA-238V無源晶振,3225愛普生電子晶振輕薄封裝實現高效空間利用,完美契合手機,平板電腦等EPSON便攜式電子晶振的內部布局需求.作為無源晶振品類中的成熟型號,其具備快速起振特性,頻率一致性高,搭配愛普生嚴格的質量管控體系,產品不良率極低.同時,器件引腳兼容性強,可直接替換同封裝規格其他型號,為終端廠商提供便捷的選型與量產解決方案.
- SIT1602AI-22-33E-25.000000G,SITIME品牌晶振,可編程應用晶振
- SIT1602AI-22-33E-25.000000G,SITIME品牌晶振,可編程應用晶振,依托SITIME晶振領先的MEMS制造工藝,采用抗干擾封裝設計與高穩定性材料,具備極強的環境適應性.產品通過嚴苛的工業級可靠性測試,包括1000次冷熱沖擊循環,15G加速度機械振動,長時間高溫高濕老化等,能抵御工業現場,戶外設備等惡劣工作條件,抗電磁干擾(EMI)性能優異,平均無故障工作時間(MTBF)超2億小時,遠超傳統石英晶振的可靠性標準.
JLX-PD
金洛鑫產品系列
PRODUCT LINE
石英晶振
QuartzCrystal
- KDS晶振
- 愛普生晶振
- NDK晶振
- 京瓷晶振
- 精工晶振
- 西鐵城晶振
- 大河晶振
- 村田晶振
- 泰藝晶振
- TXC晶振
- 鴻星晶振
- 希華晶振
- 加高晶振
- 百利通亞陶晶振
- 嘉碩晶振
- 津綻晶振
- 瑪居禮晶振
- 富士晶振
- SMI晶振
- Lihom晶振
- SHINSUNG晶振
- NAKA晶振
- AKER晶振
- NKG晶振
- NJR晶振
- Sunny晶振
貼片晶振
SMDcrystal
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康納溫菲爾德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal晶振
- 維管晶振
- ECScrystal晶振
- 日蝕晶振
- 拉隆晶振
- 格林雷晶振
- SiTimeCrystal晶振
- IDTcrystal晶振
- PletronicsCrystal晶振
- StatekCrystal晶振
- AEK晶振
- AEL晶振
- Cardinal晶振
- Crystek晶振
- Euroquartz晶振
- Fox晶振
- Frequency晶振
- GEYER晶振
- KVG晶振
- ILSI晶振
- Mmdcomp晶振
- MtronPTI晶振
- QANTEK晶振
- QuartzCom晶振
- Quarztechnik晶振
- Suntsu晶振
- Transko晶振
- Wi2Wi晶振
- ITTI晶振
- Oscilent晶振
- ACT晶振
- Rubyquartz晶振
- MTI-milliren晶振
- PDI晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Anderson晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- FILTRONETICS晶振
- STD晶振
- Q-Tech晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- ARGO晶振
- 瑞薩renesas晶振
- Skyworks晶振
- Dynamic迪拉尼
諧振器濾波器
Resonator
溫補晶振
TCXOcrystal
32.768K
32768Kcrystal
霧化片
AtomizationPiece
智能穿戴
車載安防
通訊網絡
智能玩具
金洛鑫聯系方式
