Silicon品牌,535BB200M000DG,6G以太網晶振
頻率：200MHz
尺寸：7.0mm x 5.0mm
Silicon品牌,535BB200M000DG,6G以太網晶振,Silicon晶振,Si535石英振蕩器,進口有源晶振,535BB200M000DG晶振,六腳貼片晶振,LVDS輸出差分晶振,7050mm晶振,SMD晶振,頻率200MHz,電壓3.3V,頻率偏差20ppm,工作溫度-40~85°C,無鉛環保晶振,高可靠性晶振,低老化晶振,6G以太網晶振,網絡存儲器晶振,通訊設備晶振,測試與測量設備晶振.
訂購熱線：0755-27837162
Silicon品牌,535BB200M000DG,6G以太網晶振,Silicon晶振,Si535石英振蕩器,進口有源晶振,535BB200M000DG晶振,六腳貼片晶振,LVDS輸出差分晶振,7050mm晶振,SMD晶振,頻率200MHz,電壓3.3V,頻率偏差20ppm,工作溫度-40~85°C,無鉛環保晶振,高可靠性晶振,低老化晶振,6G以太網晶振,網絡存儲器晶振,通訊設備晶振,測試與測量設備晶振.

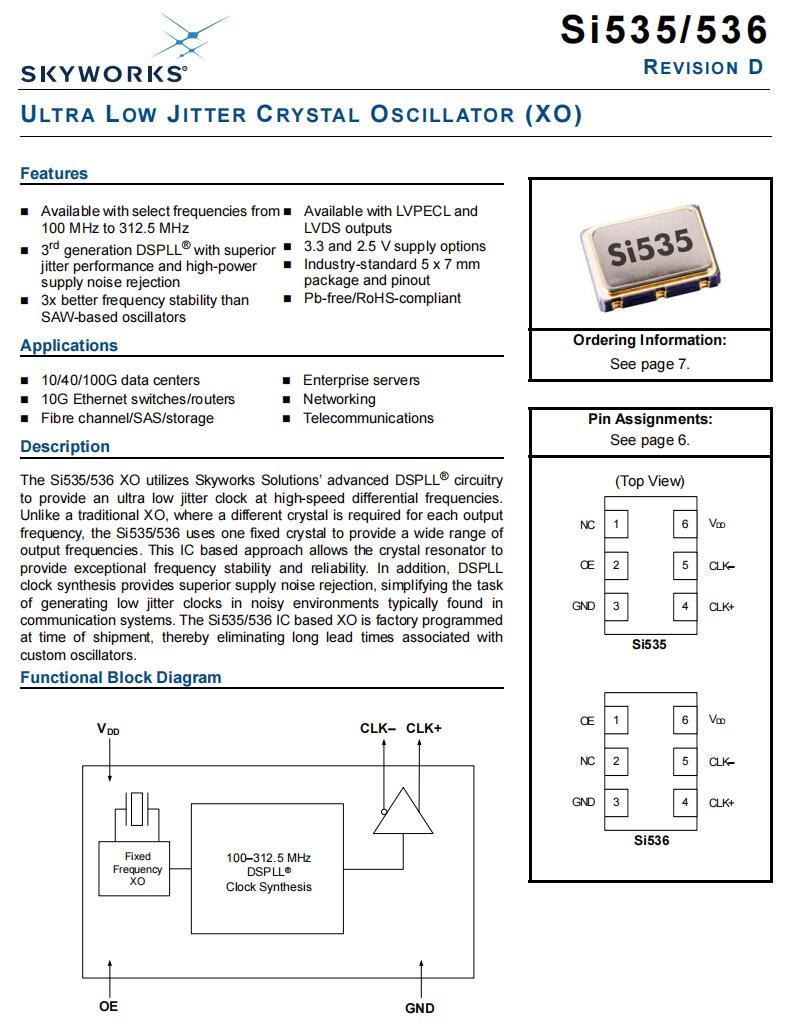

Silicon品牌,535BB200M000DG,6G以太網晶振特點：
-可選擇10MHz ~ 312.5MHz的任意頻率
-第三代DSPLL®具有優越的抖動性能和高電源噪聲抑制
-頻率穩定性優于SAW-based振蕩器
-3.3、2.5供電選項
-可與LVPECL和LVDS輸出
-行業標準的5 × 7 mm封裝和引腳
-無鉛，符合RoHS標準
Silicon品牌,535BB200M000DG,6G以太網晶振規格表
項目
符號
規格說明
條件
額定頻率
f_nom
200MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
3.3V
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~ +85℃
頻率穩定性
f_tol
±20ppm
+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流
IDD
98mA Max
LVDS
對稱性（占空比）
SYM
45%~55%
在輸出交叉點
LVDS輸出選項
VO
1.275V Max
mid-level
VOD
0.9Vpp Max
swing (diff)
輸入電壓
VIH
0.75×VDD Min
VIL
0.5V Max
上升下降時間
tr/tf
350ps Max
LVDS
起始時間
t str
10ms Max
相位抖動
tpj
0.40ps Max
12 kHz to 20 MHz brickwall

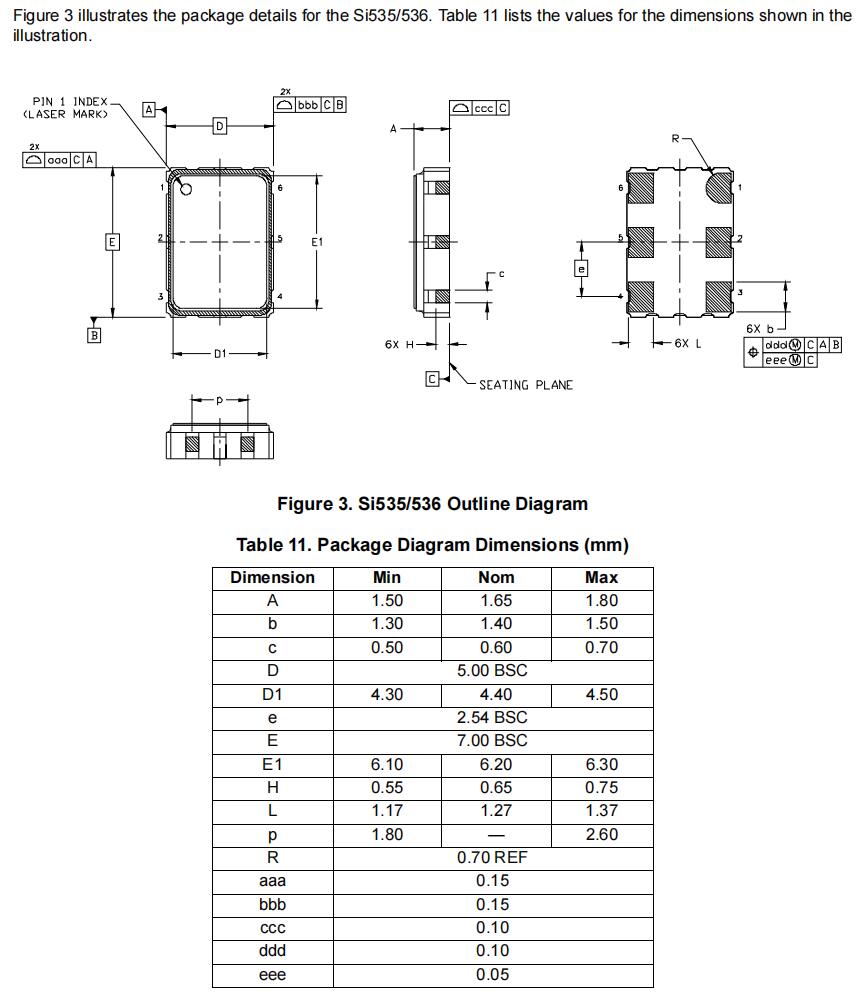

Silicon品牌,535BB200M000DG,6G以太網晶振尺寸圖
