Silicon品牌,590AB70M6560DG,6G通訊差分晶振
頻率：70.656MHz
尺寸：7.0mm x 5.0mm
Silicon品牌,590AB70M6560DG,6G通訊差分晶振,歐美進口晶振,Silicon晶振,Si590差分晶振,590AB70M6560DG晶振,LVPECL輸出晶振,有源晶振,石英振蕩器,7050mm晶振,六腳貼片晶振,頻率70.656MHz,電壓3.3V,頻率穩定性25ppm,工作溫度-40~85°C,高穩定性晶振,低相位噪聲晶振,低抖動晶振,6G通訊晶振,無線網絡晶振,存儲系統晶振,測試與測量設備晶振.
訂購熱線：0755-27837162
Silicon品牌,590AB70M6560DG,6G通訊差分晶振,歐美進口晶振,Silicon晶振,Si590差分晶振,590AB70M6560DG晶振,LVPECL輸出晶振,有源晶振,石英振蕩器,7050mm晶振,六腳貼片晶振,頻率70.656MHz,電壓3.3V,頻率穩定性25ppm,工作溫度-40~85°C,高穩定性晶振,低相位噪聲晶振,低抖動晶振,6G通訊晶振,無線網絡晶振,存儲系統晶振,測試與測量設備晶振.

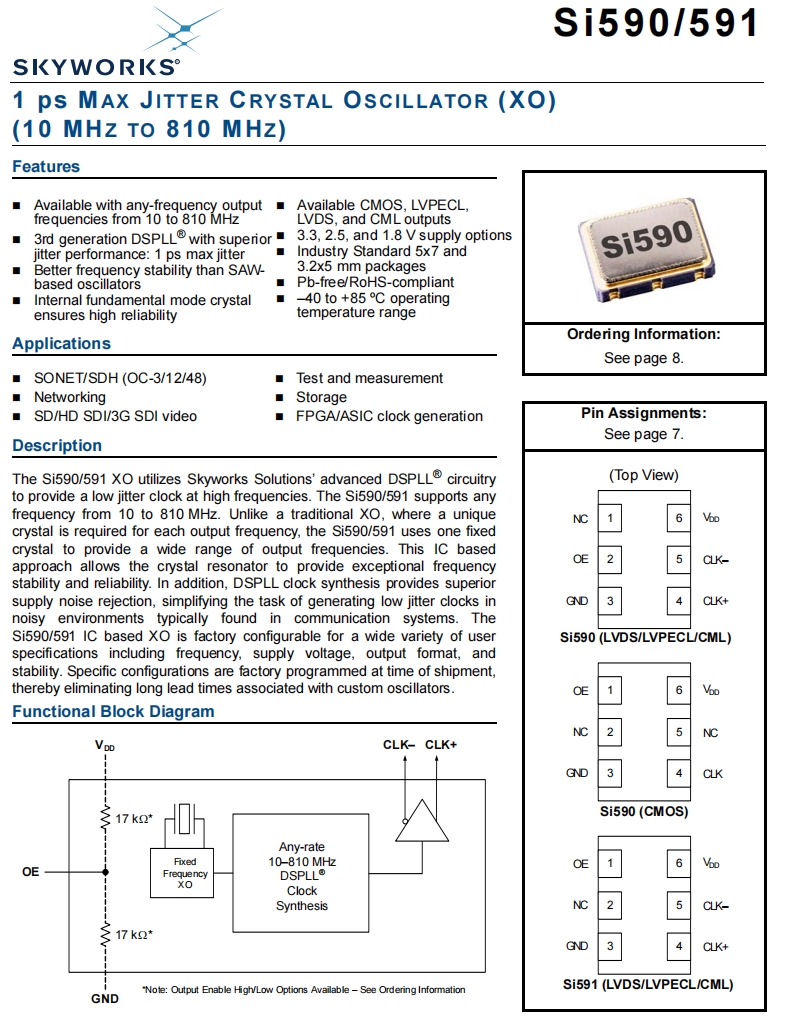

Silicon品牌,590AB70M6560DG,6G通訊差分晶振特點：
-可選擇從10到810MHz的任何頻率輸出
-第三代DSPLL®具有優越的抖動性能:最大抖動1 ps
-比基于SAW的振蕩器頻率穩定性更好
-內部基模晶體保證高可靠性
-具備CMOS, LVPECL，LVDS和CML輸出
-3.3、2.5、1.8 V供電選項
-行業標準5x7和3.2x5 mm封裝
-Pb-free /通過無鉛認證
-工作溫度范圍-40至+85ºC
Silicon品牌,590AB70M6560DG,6G通訊差分晶振規格表
項目
符號
規格說明
條件
額定頻率
f_nom
70.656MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
3.3V
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~ +85℃
頻率穩定性
f_tol
±25ppm
+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流
IDD
125mA Max
LVPECL
對稱性（占空比）
SYM
45%~55%
在輸出交叉點
LVPECL輸出選項
VO
VDD – 1.25V Max
mid-level
VOD
1.9Vpp Max
swing (diff)
輸入電壓
VIH
0.75×VDD Min
VIL
0.5V Max
上升下降時間
tr/tf
350ps Max
LVPECL
起始時間
t str
10ms Max
相位抖動
tpj
1.0ps Max
12 kHz to 20 MHz

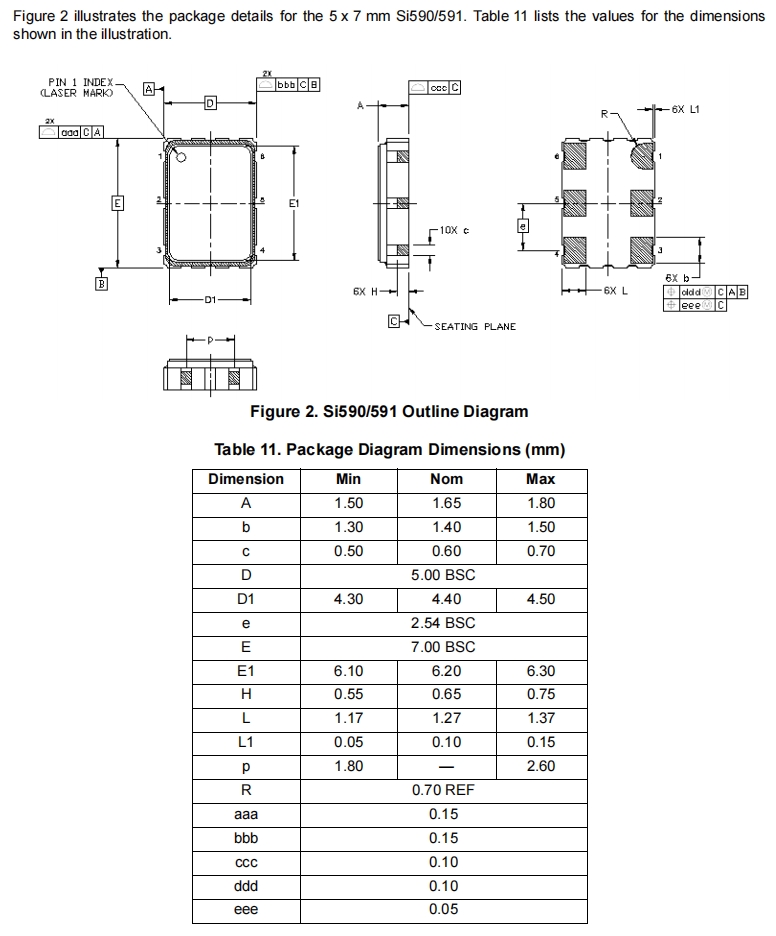

Silicon品牌,590AB70M6560DG,6G通訊差分晶振尺寸圖
