SST20C33R48VE-38.000M,Suntsu進口鐘振,6GWIFI應用晶振
頻率：38MHZ
尺寸：20.0mm x 20.0mm
SST20C33R48VE-38.000M,Suntsu進口鐘振,6GWIFI應用晶振,VC-TCXO晶振,歐美石英晶振,SST20C33R48VE-38.000M晶振,Suntsu進口鐘振,石英晶體振蕩器,頻率38MHz,負載15pF,電壓3.3V,工作溫度-40~85°C,測試與測量設備晶振,6GWIFI應用晶振,光纖通道晶振,以太網晶振,醫療設備晶振.
SST20C33R48VE-38.000M,Suntsu進口鐘振,6GWIFI應用晶振,VC-TCXO晶振,歐美石英晶振,SST20C33R48VE-38.000M晶振,Suntsu進口鐘振,石英晶體振蕩器,頻率38MHz,負載15pF,電壓3.3V,工作溫度-40~85°C,測試與測量設備晶振,6GWIFI應用晶振,光纖通道晶振,以太網晶振,醫療設備晶振.

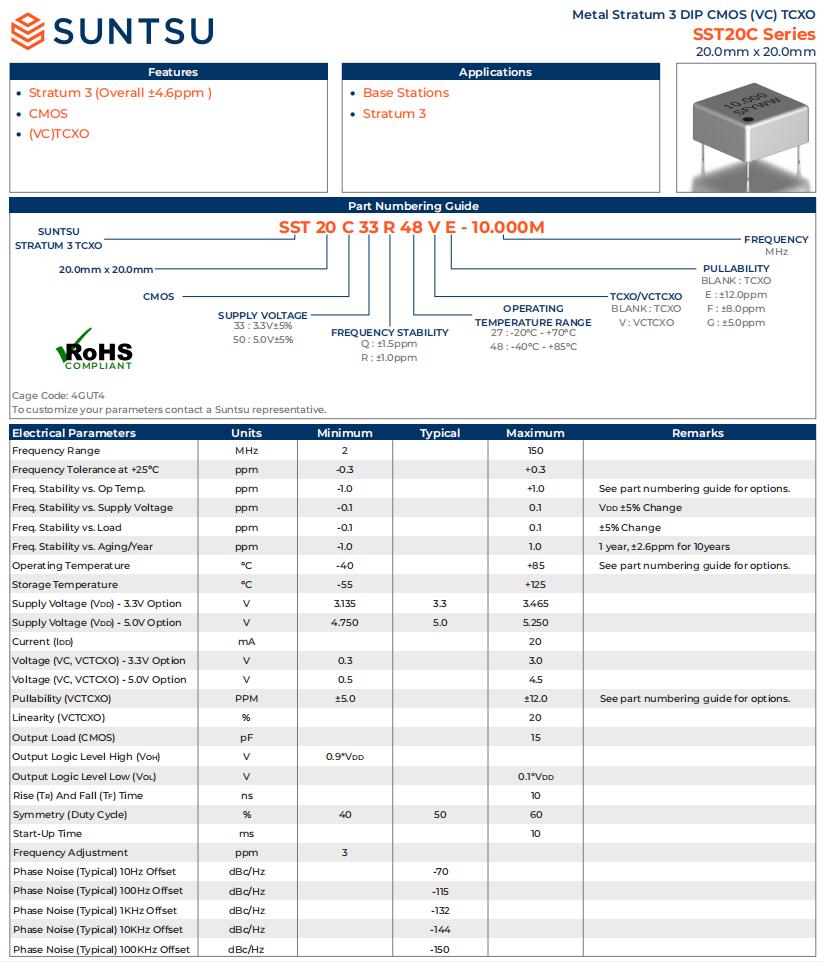

SST20C33R48VE-38.000M,Suntsu進口鐘振,6GWIFI應用晶振 參數
40%min
60%max
參數
數值
附注
頻率
38MHz
頻率容差at +25ºC
±0.3ppm
頻率穩定性與工作溫度
±1ppm
頻率穩定性與電源電壓
±0.1ppm
VDD ±5% Change
頻率穩定性與負載
±0.1ppm
±5% Change
頻率穩定性與老化
±1ppm
1 year, ±2.6ppm for 10years
工作溫度
-40~85°C
儲存溫度
-55~125°C
供電電壓
3.3V
電流
20mA max
輸出負載（CMOS）
15pF
高輸出邏輯電平(VOH)
0.9*VDD
低輸出邏輯電平(VOL)
0.1*VDD max
上升(TR)和下降(TF)時間
10ns max
對稱性（占空比）
啟動時間
10ms max
頻率調制
3ppm
相位噪聲(典型)10Hz偏移
-70dBc/Hz
相位噪聲(典型)100Hz偏移
-115dBc/Hz
相位噪聲(典型)1KHz偏移
-132dBc/Hz
相位噪聲(典型)10KHz偏移
-144dBc/Hz
相位噪聲(典型)100KHz偏移
-150dBc/Hz

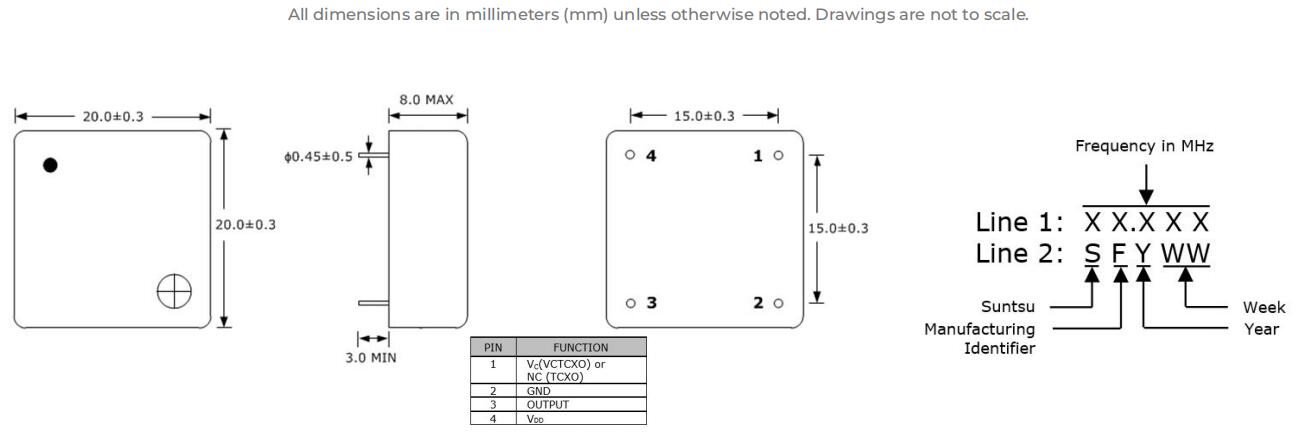

SST20C33R48VE-38.000M,Suntsu進口鐘振,6GWIFI應用晶振 尺寸圖
| 原廠編碼 | Logic | Jitter | Voltage | Stability | Operating Temp. |
| SQG22C2A07-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±50ppm | 0℃ - +70℃ |
| SQG22C2A071-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±50ppm | 0℃ - +70℃ |
| SQG22C2A16-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±50ppm | -10℃ - +60℃ |
| SQG22C2A161-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±50ppm | -10℃ - +60℃ |
| SQG22C2A17-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±50ppm | -10℃ - +70℃ |
| SQG22C2A171-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±50ppm | -10℃ - +70℃ |
| SQG22C2A27-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±50ppm | -20℃ - +70℃ |
| SQG22C2A271-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±50ppm | -20℃ - +70℃ |
| SQG22C2A38-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±50ppm | -30℃ - +85℃ |
| SQG22C2A381-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±50ppm | -30℃ - +85℃ |
| SQG22C2A48-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±50ppm | -40℃ - +85℃ |
| SQG22C2A481-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±50ppm | -40℃ - +85℃ |
| SQG22C2B07-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±30ppm | 0℃ - +70℃ |
| SQG22C2B071-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±30ppm | 0℃ - +70℃ |
| SQG22C2B16-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±30ppm | -10℃ - +60℃ |
| SQG22C2B161-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±30ppm | -10℃ - +60℃ |
| SQG22C2B17-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±30ppm | -10℃ - +70℃ |
| SQG22C2B171-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±30ppm | -10℃ - +70℃ |
| SQG22C2B27-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±30ppm | -20℃ - +70℃ |
| SQG22C2B271-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±30ppm | -20℃ - +70℃ |
| SQG22C2B38-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±30ppm | -30℃ - +85℃ |
| SQG22C2B381-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±30ppm | -30℃ - +85℃ |
| SQG22C2B48-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±30ppm | -40℃ - +85℃ |
| SQG22C2B481-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±30ppm | -40℃ - +85℃ |
| SQG22C2C07-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±25ppm | 0℃ - +70℃ |
| SQG22C2C071-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±25ppm | 0℃ - +70℃ |
| SQG22C2C16-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±25ppm | -10℃ - +60℃ |
| SQG22C2C161-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±25ppm | -10℃ - +60℃ |
| SQG22C2C17-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±25ppm | -10℃ - +70℃ |
| SQG22C2C171-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±25ppm | -10℃ - +70℃ |
| SQG22C2C27-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±25ppm | -20℃ - +70℃ |
| SQG22C2C271-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±25ppm | -20℃ - +70℃ |
| SQG22C2C38-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±25ppm | -30℃ - +85℃ |
| SQG22C2C381-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±25ppm | -30℃ - +85℃ |
| SQG22C2C48-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±25ppm | -40℃ - +85℃ |
| SQG22C2C481-8.000M-250.000M | CMOS | 1.5ps | 2.5V±5% | ±25ppm | -40℃ - +85℃ |
| SQG22C3A07-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±50ppm | 0℃ - +70℃ |
| SQG22C3A071-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±50ppm | 0℃ - +70℃ |
| SQG22C3A16-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -10℃ - +60℃ |
| SQG22C3A161-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -10℃ - +60℃ |
| SQG22C3A17-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -10℃ - +70℃ |
| SQG22C3A171-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -10℃ - +70℃ |
| SQG22C3A27-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -20℃ - +70℃ |
| SQG22C3A271-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -20℃ - +70℃ |
| SQG22C3A38-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -30℃ - +85℃ |
| SQG22C3A381-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -30℃ - +85℃ |
| SQG22C3A48-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -40℃ - +85℃ |
| SQG22C3A481-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -40℃ - +85℃ |
| SQG22C3B07-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±30ppm | 0℃ - +70℃ |
| SQG22C3B071-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±30ppm | 0℃ - +70℃ |
| SQG22C3B16-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -10℃ - +60℃ |
| SQG22C3B161-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -10℃ - +60℃ |
| SQG22C3B17-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -10℃ - +70℃ |
| SQG22C3B171-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -10℃ - +70℃ |
| SQG22C3B27-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -20℃ - +70℃ |
| SQG22C3B271-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -20℃ - +70℃ |
| SQG22C3B38-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -30℃ - +85℃ |
| SQG22C3B381-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -30℃ - +85℃ |
| SQG22C3B48-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -40℃ - +85℃ |
| SQG22C3B481-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -40℃ - +85℃ |
| SQG22C3C07-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±25ppm | 0℃ - +70℃ |
| SQG22C3C071-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±25ppm | 0℃ - +70℃ |
| SQG22C3C16-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±25ppm | -10℃ - +60℃ |
| SQG22C3C161-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±25ppm | -10℃ - +60℃ |
| SQG22C3C17-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±25ppm | -10℃ - +70℃ |
| SQG22C3C171-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±25ppm | -10℃ - +70℃ |
| SQG22C3C27-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±25ppm | -20℃ - +70℃ |
| SQG22C3C271-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±25ppm | -20℃ - +70℃ |
| SQG22C3C38-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±25ppm | -30℃ - +85℃ |
| SQG22C3C381-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±25ppm | -30℃ - +85℃ |
| SQG22C3C48-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±25ppm | -40℃ - +85℃ |
| SQG22C3C481-8.000M-250.000M | CMOS | 1.5ps | 3.3V±5% | ±25ppm | -40℃ - +85℃ |
| SQG22L2A071-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±50ppm | 0℃ - +70℃ |
| SQG22L2A072-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±50ppm | 0℃ - +70℃ |
| SQG22L2A161-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10℃ - +60℃ |
| SQG22L2A162-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10℃ - +60℃ |
| SQG22L2A171-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10℃ - +70℃ |
| SQG22L2A172-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10℃ - +70℃ |
| SQG22L2A271-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -20℃ - +70℃ |
| SQG22L2A272-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -20℃ - +70℃ |
| SQG22L2A381-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -30℃ - +85℃ |
| SQG22L2A382-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -30℃ - +85℃ |
| SQG22L2A481-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -40℃ - +85℃ |
| SQG22L2A482-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -40℃ - +85℃ |
| SQG22L2B071-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±30ppm | 0℃ - +70℃ |
| SQG22L2B072-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±30ppm | 0℃ - +70℃ |
| SQG22L2B161-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10℃ - +60℃ |
| SQG22L2B162-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10℃ - +60℃ |
| SQG22L2B171-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10℃ - +70℃ |
| SQG22L2B172-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10℃ - +70℃ |
| SQG22L2B271-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -20℃ - +70℃ |
| SQG22L2B272-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -20℃ - +70℃ |
| SQG22L2B381-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -30℃ - +85℃ |
| SQG22L2B382-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -30℃ - +85℃ |
| SQG22L2B481-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -40℃ - +85℃ |
| SQG22L2B482-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -40℃ - +85℃ |
| SQG22L2C071-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±25ppm | 0℃ - +70℃ |
| SQG22L2C072-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±25ppm | 0℃ - +70℃ |
| SQG22L2C161-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10℃ - +60℃ |
| SQG22L2C162-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10℃ - +60℃ |
| SQG22L2C171-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10°C - +70°C |
| SQG22L2C172-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10°C - +70°C |
| SQG22L2C271-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -20°C - +70°C |
| SQG22L2C272-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -20°C - +70°C |
| SQG22L2C381-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -30°C - +85°C |
| SQG22L2C382-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -30°C - +85°C |
| SQG22L2C481-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -40°C - +85°C |
| SQG22L2C482-8.000M-1500.000M | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -40°C - +85°C |
| SQG22L3A071-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±50ppm | 0°C - +70°C |
| SQG22L3A072-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±50ppm | 0°C - +70°C |
| SQG22L3A161-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +60°C |
| SQG22L3A162-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +60°C |
| SQG22L3A171-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +70°C |
| SQG22L3A172-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +70°C |
| SQG22L3A271-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -20°C - +70°C |
| SQG22L3A272-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -20°C - +70°C |
| SQG22L3A381-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -30°C - +85°C |
| SQG22L3A382-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -30°C - +85°C |
| SQG22L3A481-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -40°C - +85°C |
| SQG22L3A482-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -40°C - +85°C |
| SQG22L3B071-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±30ppm | 0°C - +70°C |
| SQG22L3B072-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±30ppm | 0°C - +70°C |
| SQG22L3B161-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +60°C |
| SQG22L3B162-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +60°C |
| SQG22L3B171-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +70°C |
| SQG22L3B172-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +70°C |
| SQG22L3B271-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -20°C - +70°C |
| SQG22L3B272-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -20°C - +70°C |
| SQG22L3B381-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -30°C - +85°C |
| SQG22L3B382-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -30°C - +85°C |
| SQG22L3B481-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -40°C - +85°C |
| SQG22L3B482-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -40°C - +85°C |
| SQG22L3C071-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±25ppm | 0°C - +70°C |
| SQG22L3C072-8.000M-1500.000M | LVDS | 1.5ps | 3.3V±5% | ±25ppm | 0°C - +70°C |
公司名：深圳市金洛鑫電子有限公司
聯系人：茹紅青
手機：13510569637
電話：0755-27837162
QQ號：657116624
微信公眾號：CITIZENCRYSTAL
搜狐公眾號：晶振石英晶振NDK晶振
郵箱：jinluodz@163.com
地址：深圳市寶安區41區甲岸路19號
網址：http://www.jftz888.com/
相關的產品 / Related Products
- Q40.0-JXS22-10-10/10-FU-WA-LF,JAUCH無源晶振,2520石英晶振
- Q40.0-JXS22-10-10/10-FU-WA-LF,JAUCH無源晶振,2520石英晶振,專為緊湊型電子設備提供穩定的時鐘諧振信號.該器件依托優質石英晶圓與成熟封裝工藝,具備優異的頻率精度,低等效串聯電阻(ESR)與穩定的溫度特性,可廣泛應用于消費電子,物聯網模塊,無線通信等對時鐘基礎精度要求較高的場景.
- DSC6001JA3B-001.0000,Microchip晶體振蕩器,2520小型封裝晶振
DSC6001JA3B-001.0000,Microchip晶體振蕩器,2520小型封裝晶振,以1MHz精準頻率為藍牙模塊,傳感器節點,車載信息娛樂系統提供穩定時序參考,CMOS輸出晶振模式確保信號傳輸?shù)牡蛽p耗與高完整性.產品支持1.71V~3.63V寬電壓范圍,適配電池供電設備的低功耗需求,同時通過嚴苛的環境可靠性測試,在溫濕度劇烈變化,振動干擾等復雜工況下仍能穩定工作.
- 511BBA100M000AAGR,LVDS差分輸出晶振,7050思佳訊進口晶振
511BBA100M000AAGR,LVDS差分輸出晶振,7050思佳訊進口晶振,100MHz頻率搭配LVDS差分輸出,能完美滿足服務器,交換機,路由器等網絡設備的時鐘同步需求.7050封裝兼顧小型化與穩定性,可嵌入FPGA,高速ADC/DAC模塊,有效減少數據傳輸誤碼率,在5G通信基站,數據中心存儲設備及北斗定位終端中發揮核心時序控制作用.
JLX-PD
金洛鑫產品系列
PRODUCT LINE
石英晶振
QuartzCrystal
- KDS晶振
- 愛普生晶振
- NDK晶振
- 京瓷晶振
- 精工晶振
- 西鐵城晶振
- 大河晶振
- 村田晶振
- 泰藝晶振
- TXC晶振
- 鴻星晶振
- 希華晶振
- 加高晶振
- 百利通亞陶晶振
- 嘉碩晶振
- 津綻晶振
- 瑪居禮晶振
- 富士晶振
- SMI晶振
- Lihom晶振
- SHINSUNG晶振
- NAKA晶振
- AKER晶振
- NKG晶振
- NJR晶振
- Sunny晶振
貼片晶振
SMDcrystal
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康納溫菲爾德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal晶振
- 維管晶振
- ECScrystal晶振
- 日蝕晶振
- 拉隆晶振
- 格林雷晶振
- SiTimeCrystal晶振
- IDTcrystal晶振
- PletronicsCrystal晶振
- StatekCrystal晶振
- AEK晶振
- AEL晶振
- Cardinal晶振
- Crystek晶振
- Euroquartz晶振
- Fox晶振
- Frequency晶振
- GEYER晶振
- KVG晶振
- ILSI晶振
- Mmdcomp晶振
- MtronPTI晶振
- QANTEK晶振
- QuartzCom晶振
- Quarztechnik晶振
- Suntsu晶振
- Transko晶振
- Wi2Wi晶振
- ITTI晶振
- Oscilent晶振
- ACT晶振
- Rubyquartz晶振
- MTI-milliren晶振
- PDI晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Anderson晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- FILTRONETICS晶振
- STD晶振
- Q-Tech晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- ARGO晶振
- 瑞薩renesas晶振
- Skyworks晶振
- Dynamic迪拉尼
