5G無線模塊專用晶振SG3225EAN編碼X1G004251002100

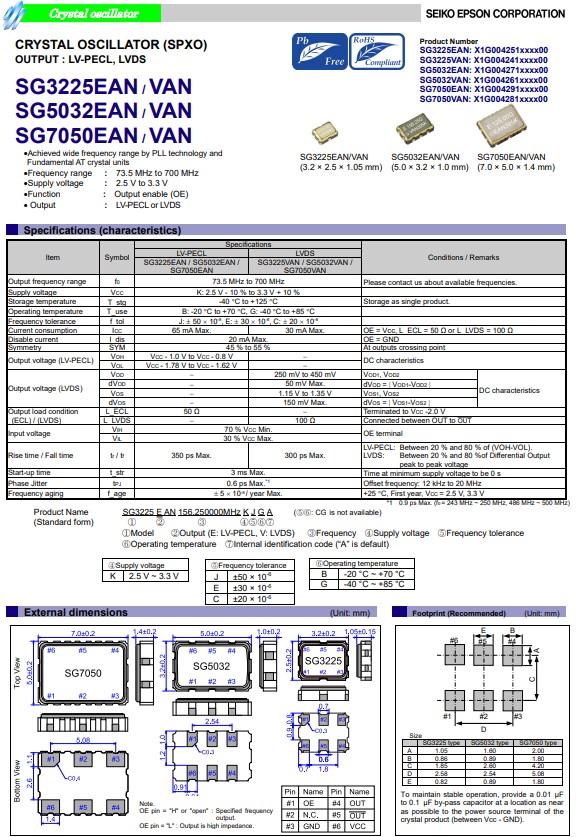

愛普生晶振SG3225EAN差分晶振通過使用PLL技術和AT晶體單元來實現寬頻率范圍,為用戶提供73.5MHZ至700MHZ高頻,可選任一頻點.具有低電流,低電源電壓可達到低值1V,這對于普通貼片晶振而言是做不到的,此款差分晶振的工作電壓范圍在2.5V至3.3V.差分晶振具有LVDS,HCSL和LV-PECL三態輸出功能,愛普生SG3225EAN差分晶振就是具有LV-PECL輸出功能的一款差分石英晶體振蕩器.
SG3225EAN晶振采用3.2x2.5mm封裝,具有6個腳位貼片晶振,耐高溫儲存溫度可達-40℃~+125℃范圍,工作溫度范圍-40℃~85℃.低老化的特點±5x10-6/year Max.差分晶振在產品中使用具有高可靠性.差分晶振的精度值（PPM）可精確到±10PM,±20PM,±30PM,±50PM等.
SG3225EAN晶振采用3.2x2.5mm封裝,具有6個腳位貼片晶振,耐高溫儲存溫度可達-40℃~+125℃范圍,工作溫度范圍-40℃~85℃.低老化的特點±5x10-6/year Max.差分晶振在產品中使用具有高可靠性.差分晶振的精度值（PPM）可精確到±10PM,±20PM,±30PM,±50PM等.
5G無線模塊專用晶振SG3225EAN編碼X1G004251002100
                                                                         石英晶體振蕩器
|
 型號
|
 頻率
|
 尺寸
|
 輸出波
|
 電源電壓
|
 工作溫度
|
| X1G004251000100 | SG3225EAN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251000200 | SG3225EAN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004251000900 | SG3225EAN | 212.500000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251001200 | SG3225EAN | 75.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251001500 | SG3225EAN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251002000 | SG3225EAN | 700.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251002100 | SG3225EAN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251002400 | SG3225EAN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251002600 | SG3225EAN | 400.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251002800 | SG3225EAN | 212.500000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251003200 | SG3225EAN | 150.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251003400 | SG3225EAN | 156.250000MHz | 3.20x2.50x1.20mm | 2.250 to 3.630 V | -40 to 85 °C | |
| X1G004251003500 | SG3225EAN | 312.500000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251006200 | SG3225EAN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004251010000 | SG3225EAN | 114.285000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251012100 | SG3225EAN | 161.132812MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251012200 | SG3225EAN | 155.520000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004251012300 | SG3225EAN | 133.330000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251012400 | SG3225EAN | 322.562500MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251012500 | SG3225EAN | 133.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251012600 | SG3225EAN | 322.265625MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251012700 | SG3225EAN | 425.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251012800 | SG3225EAN | 156.253906MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251013100 | SG3225EAN | 360.500000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004251013200 | SG3225EAN | 644.531200MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251013800 | SG3225EAN | 644.531250MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251013900 | SG3225EAN | 121.500000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251014000 | SG3225EAN | 650.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
隨著無線網絡,智能家電,4G,5G網絡,自動駕駛汽車等高科技的發展,對于石英晶體振蕩器的使用性能也要求越來越高.比如現在我們所依賴的網絡,單從速度上就不能滿足我們的需求了,而高精度SG3225EAN晶振就是為千兆光纖通信而生,為了我們更好的使用高速網絡,為滿足網絡設備對高標準參考時鐘的需求.
