如今在晶振的采購和咨詢活動中,編碼和代碼的使用已經非常廣泛,很多用戶都識得編碼的重要性,因?yàn)樗梢源硪活w完整而準確的晶體晶振,即使你對要采購的產品幾乎完全不懂,只要有編碼一樣可以買到正確的產品.之前金洛鑫電子已經介紹了京瓷公司的石英晶體系列原廠編碼,近年來Kyocera晶體振蕩器也越來越受歡迎,如KC3225K40.0000C1GE00貼片晶振系列已被廣泛應用到軍事,航空航天,船舶呼叫系統,雷達導航,工業,汽車,精密儀器儀表,醫療器械等高端產品.
在對KC3225K40.0000C1GE00晶振進行講解之前,我們可以先來了解下這個編碼的系列料號,通常Kyocera品牌的編碼,會把料號放在最前面,也就是KC3225K這個型號.它是日本京セラ株式會社旗下石英晶體振蕩器模塊的,擁有超小型,超薄型SMD型封裝,接縫密封技術生產使其可靠性高,CMOS輸出邏輯,標準電壓+1.8V~+5.0V.屬于低電流消耗,低相位噪聲型高性能振蕩器產品.工作溫度根據不同的產品要求可選-10℃~+70℃,-40℃~+85℃,-40℃~+105℃,可以適應比較惡劣的環境.
京瓷晶振KC3225K的頻率范圍是1.500MHz~160.000MHz,意味著這顆料號擁有多種不同的規格,KC3225K40.0000C1GE00我們可以仔細來看下這條編碼,在系列料號后面的數字代表的是這個頻率范圍內,40.000MHz的這個頻點.

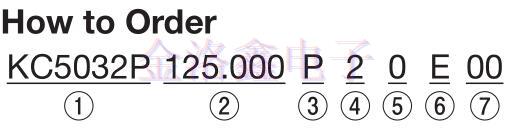

標注了①的是該系列的型號,②指的是該貼片晶振頻率,因?yàn)槊恳粭l編碼的頻率都是固定的,標注③的是振蕩器的輸出類型,常見的輸出邏輯主要有CMOS,HCMOS,LVDS,LV-PECL,SCL,LVCMOS,削峰正弦波和方波等,用不同的英文字母代替.后面的④則是電源電壓的意思,現在的有源晶振電壓基本都是+1.8V,+2.5V,+2.8V,+3.0V,+3.3V和+5.0V等,基本上沒有產品使用更大的電壓了,因?yàn)樵降偷碾妷翰拍芙档凸?/span>.⑤指的是有源晶振的頻率公差也就是頻率穩定度,標準⑥的是對稱/INH功能(45/55％,待機),最后⑦的意義并不大,只是客戶特殊型號的后綴,或者產品的包裝數量規格.
|
KC3225K40.0000C1GE00 |
KC3225K晶振 |
40MHz |
(3.20mmx2.50mm) |
|
KC3225K20.0000C1GE00 |
KC3225K晶振 |
20MHz |
(3.20mmx2.50mm) |
|
KC3225K27.0000C1GE00 |
KC3225K晶振 |
27MHz |
(3.20mmx2.50mm) |
|
KC3225K32.0000C1GE00 |
KC3225K晶振 |
32MHz |
(3.20mmx2.50mm) |
|
KC3225K33.3333C1GE00 |
KC3225K晶振 |
33.3333MHz |
(3.20mmx2.50mm) |
|
KC3225K48.0000C1GE00 |
KC3225K晶振 |
48MHz |
(3.20mmx2.50mm) |
|
KC3225K50.0000C1GE00 |
KC3225K晶振 |
50MHz |
(3.20mmx2.50mm) |
|
KC2520K48.0000C1GE00 |
KC2520K晶振 |
48MHz |
(2.50mmx2.00mm) |
|
KC2520K10.0000C1GE00 |
KC2520K晶振 |
10MHz |
(2.50mmx2.00mm) |
|
KC2520K33.3333C1GE00 |
KC2520K晶振 |
33.3333MHz |
(2.50mmx2.00mm) |
|
KC3225K1.84320C1GE00 |
KC3225K晶振 |
1.8432MHz |
(3.20mmx2.50mm) |
|
KC3225K7.37280C1GE00 |
KC3225K晶振 |
7.3728MHz |
(3.20mmx2.50mm) |
|
KC3225K8.00000C1GE00 |
KC3225K晶振 |
8MHz |
(3.20mmx2.50mm) |
|
KC3225K10.0000C1GE00 |
KC3225K晶振 |
10MHz |
(3.20mmx2.50mm) |
|
KC3225K12.0000C1GE00 |
KC3225K晶振 |
12MHz |
(3.20mmx2.50mm) |
|
KC3225K14.7456C1GE00 |
KC3225K晶振 |
14.7456MHz |
(3.20mmx2.50mm) |
|
KC3225K18.4320C1GE00 |
KC3225K晶振 |
18.432MHz |
(3.20mmx2.50mm) |
|
KC3225K32.7680C1GE00 |
KC3225K晶振 |
32.768MHz |
(3.20mmx2.50mm) |
|
KC3225K33.0000C1GE00 |
KC3225K晶振 |
33MHz |
(3.20mmx2.50mm) |
|
KC3225K60.0000C1GE00 |
KC3225K晶振 |
60MHz |
(3.20mmx2.50mm) |
|
KC3225K66.6667C1GE00 |
KC3225K晶振 |
66.6667MHz |
(3.20mmx2.50mm) |
|
KC2520K1.84320C1GE00 |
KC2520K晶振 |
1.8432MHz |
(2.50mmx2.00mm) |
|
KC2520K3.68640C1GE00 |
KC2520K晶振 |
3.6864MHz |
(2.50mmx2.00mm) |
|
KC2520K4.00000C1GE00 |
KC2520K晶振 |
4MHz |
(2.50mmx2.00mm) |
|
KC2520K4.09600C1GE00 |
KC2520K晶振 |
4.096MHz |
(2.50mmx2.00mm) |
|
KC2520K7.37280C1GE00 |
KC2520K晶振 |
7.3728MHz |
(2.50mmx2.00mm) |
|
KC2520K8.00000C1GE00 |
KC2520K晶振 |
8MHz |
(2.50mmx2.00mm) |
|
KC2520K12.2880C1GE00 |
KC2520K晶振 |
12.288MHz |
(2.50mmx2.00mm) |
|
KC2520K24.0000C1GE00 |
KC2520K晶振 |
24MHz |
(2.50mmx2.00mm) |
|
KC2520K25.0000C1GE00 |
KC2520K晶振 |
25MHz |
(2.50mmx2.00mm) |
|
KC2520K32.0000C1GE00 |
KC2520K晶振 |
32MHz |
(2.50mmx2.00mm) |
|
KC2520K32.7680C1GE00 |
KC2520K晶振 |
32.768MHz |
(2.50mmx2.00mm) |
|
KC2520K33.0000C1GE00 |
KC2520K晶振 |
33MHz |
(2.50mmx2.00mm) |
|
KC2520K40.0000C1GE00 |
KC2520K晶振 |
40MHz |
(2.50mmx2.00mm) |
|
KC2016K24.5760C1GE00 |
KC2016K晶振 |
24.576MHz |
(2.00mmx1.60mm) |
Kyocera品牌的普通貼片振蕩器系列產品目前最小的尺寸是2016mm,為了符合不同用戶的產品設計要求,幾乎每一款的用途都比較廣泛,而且有多種規格可以選擇,比如從1.500MHz~180.000MHz的頻率范圍,KC3225K40.0000C1GE00晶振就屬于寬頻類型的,從1.500MHz~160.000MHz之間都可以選擇,如果對其他規格有特殊要求,可以聯系供應商處理.關注金洛鑫電子http://www.jftz888.com/,可以獲取到更多其他品牌的貼片晶振原廠編碼新聞資訊或技術資料.
|
