首頁 愛普生晶振

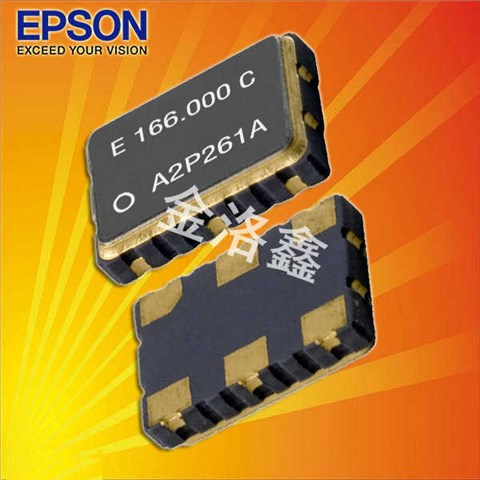

SG5032VAN 156.250000M-KJGA|156.25MHz|5032mm|50ppm|LVDS差分輸出晶振

SG5032VAN 156.250000M-KJGA|156.25MHz|5032mm|50ppm|LVDS差分輸出晶振SG5032VAN 156.250000M-KJGA|156.25MHz|5032mm|50ppm|LVDS差分輸出晶振

產品簡介

SG5032VAN 156.250000M-KJGA|156.25MHz|5032mm|50ppm|LVDS差分輸出晶振  ,SG5032VAN 156.250000M-KJGA晶振,頻率156.25MHz,尺寸5032mm,精度50ppm,LVDS差分輸出晶振,工作溫度-40~85℃,衛星通訊晶振,智能家居晶振,車載安防晶振.

產品詳情


EPSON-1

SG5032VAN 156.250000M-KJGA|156.25MHz|5032mm|50ppm|LVDS差分輸出晶振,SG5032VAN 156.250000M-KJGA晶振,頻率156.25MHz,尺寸5032mm,精度50ppm,LVDS差分輸出晶振,工作溫度-40~85℃,衛星通訊晶振,智能家居晶振,車載安防晶振.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

SG5032VAN156.250000MKJGA|156.25MHz|5032mm|50ppm|LVDS差分輸出晶振

愛普生晶振規格

SG5032VAN晶振

石英晶振基本條件

標準頻率

156.25MHz

標準頻率，可提供其他頻率

儲存溫度

-40℃~+125℃

裸存

工作溫度

-40℃~+85℃

標準溫度

上升(Tr) /下降(Tf)時間

3 ns Max.


頻率穩定度

±50ppm
+25°C對于超出標準的規格說明,
請聯系我們以便獲取相關的信息,http://www.kyoceracrystal.com/

啟動時間

3 ms Max.

超出標準的規格請聯系我們.

輸出負載

15pF

超出標準說明,請聯系我們.

輸出方式 LVDS
電源電流 30mA Max.

電源電壓

2.5~3.3V



頻率老化

±5×10-6/year Max.

+25°C,第一年

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

SG5032VAN 156.250000M-KJGA|156.25MHz|5032mm|50ppm|LVDS差分輸出晶振

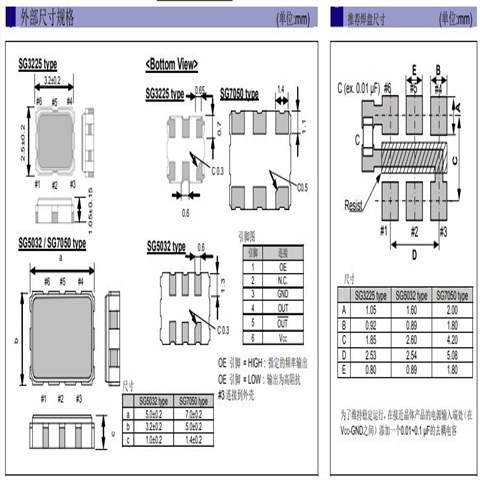

SG-5032VAN尺寸圖

編碼 Model/型號 Frequency/頻率 LxWxH/尺寸 Output Wave/輸出方式 Supply Voltage/電源電壓 Ope Temperature/工作溫度
X1G0042610001 SG5032VAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610002 SG5032VAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610003 SG5032VAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610005 SG5032VAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610006 SG5032VAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610007 SG5032VAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610008 SG5032VAN 106.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610009 SG5032VAN 212.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610010 SG5032VAN 74.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610011 SG5032VAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610012 SG5032VAN 75.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610013 SG5032VAN 150.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610015 SG5032VAN 312.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610016 SG5032VAN 312.515625 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610017 SG5032VAN 161.132800 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610020 SG5032VAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610021 SG5032VAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610023 SG5032VAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610024 SG5032VAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610025 SG5032VAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610026 SG5032VAN 106.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610027 SG5032VAN 212.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610028 SG5032VAN 74.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610029 SG5032VAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610030 SG5032VAN 75.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610031 SG5032VAN 150.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610033 SG5032VAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610034 SG5032VAN 312.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610035 SG5032VAN 312.515625 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610036 SG5032VAN 161.132800 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610039 SG5032VAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C

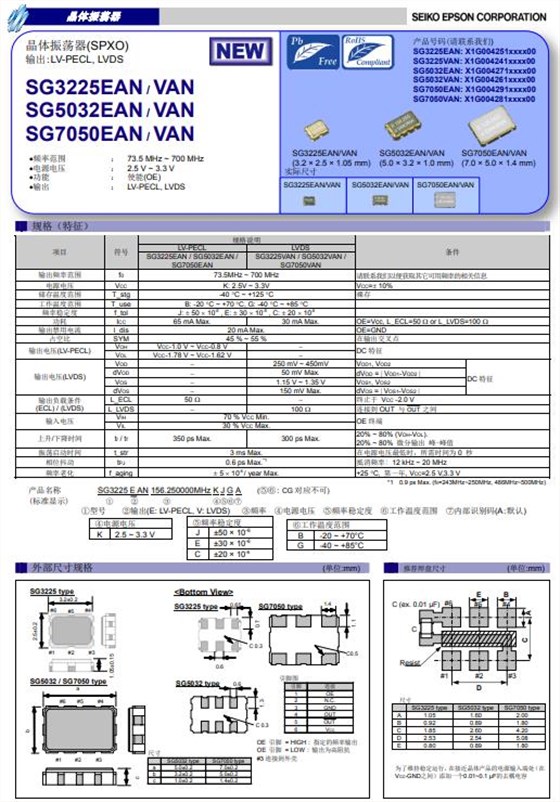

SG-5032VAN
